Tesla Meter SI345 for precise magnetic field measurement
في الأوراق المالية

Tesla Meter SI345

رمز التخزين التعريفي : SISI345
يصنع : STELLAR INSTRUMENTS
نموذج : SI345
ضمان : 1
التوفر : في الأوراق المالية
Stellar Instruments
AED 0.00 - AED 0.00
AED 0.00
AED 800.00
AED 800.00 - AED 800.00
AED 800.00
(بما في ذلك ضريبة القيمة المضافة)

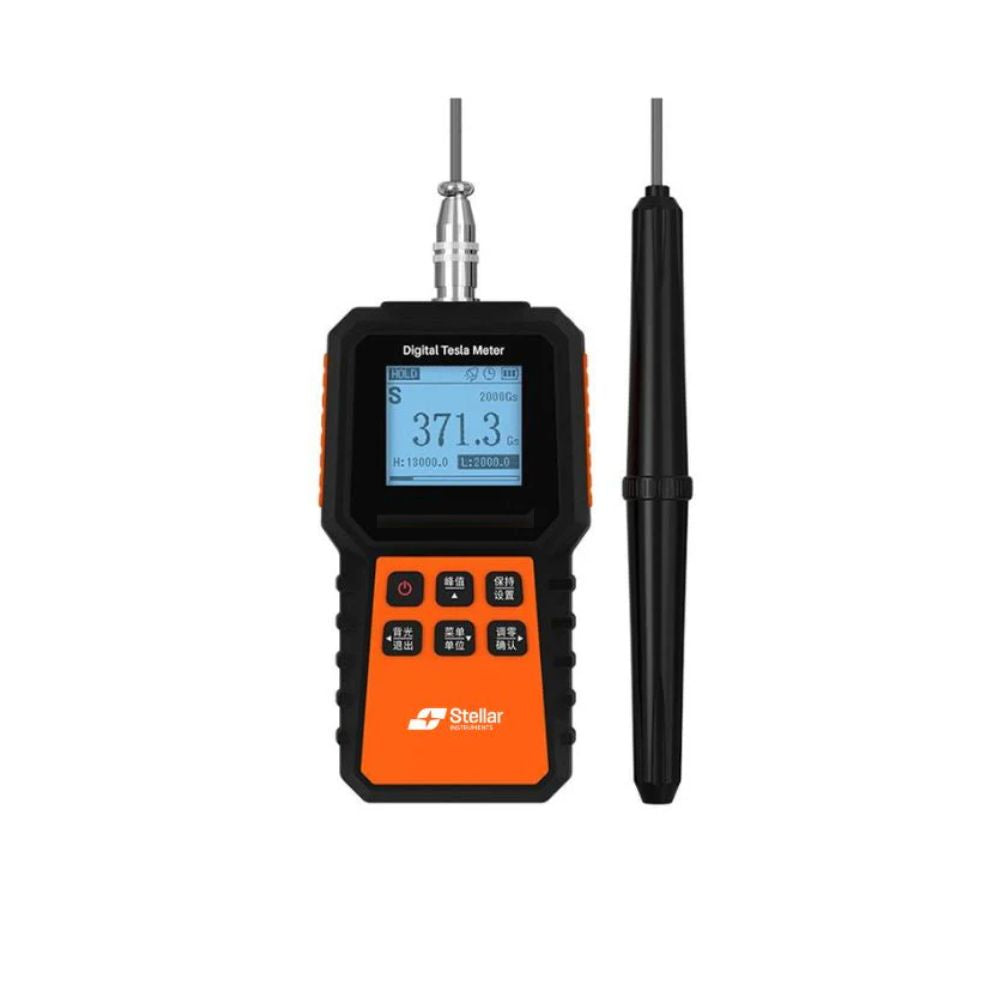

Tesla Meter SI345

The Tesla Meter SI345, also known as a Gauss meter, is a high-precision instrument designed for measuring the strength and polarity of magnetic fields. Equipped with a Hall probe, this portable, handheld device is ideal for use in industrial applications such as testing speakers, magnetic separators, DC motors, and more. The SI345 offers a peak measurement function to capture maximum values during rapid magnetic field changes, ensuring reliable and accurate data for various applications.

Features

  • High Accuracy: ±1% accuracy for dependable magnetic field measurements.
  • Peak Measurement Mode: Captures peak values during rapid pulse changes.
  • Polarity Display: Shows North/South magnetic field polarity for detailed analysis.
  • Auto-Range Function: Automatically adjusts the measurement range for ease of use.
  • Over Limit Alarm: Audible alert when measurements exceed the set threshold.
  • Data Lock Function: Freezes the current reading for convenient data logging.
Measurement Range

 0-2400mT (0-24000Gs)



Resolution

 0.01mT (200mT), 0.1mT (2000mT)



Accuracy

 ±1%



Probe Type

 Standard radial Hall probe, 164mm x 19mm x 19mm



Response Time

 0.2 seconds per measurement



Display Units

 mT and Gs



Operating Temperature

 0°C to 50°C, 20-85% RH



Storage Temperature

 -20°C to 70°C, 0-85% RH



Power Supply

 3 AAA batteries (1.5V)



Dimensions

 141mm x 73mm x 28mm



Weight

 118g



Material

 ABS



Standard Radial Hall Probe: For accurate magnetic field measurement.

Datasheet : Download

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

What is the maximum measurement range of the SI345?

The SI345 measures magnetic fields up to 2400mT or 24000Gs.

Does the SI345 have a peak measurement function?

Yes, it includes a peak measurement mode to capture maximum magnetic field values during rapid changes.

What type of probe does the SI345 use?

The device comes with a standard radial Hall probe for high-accuracy measurements.

Is the tesla meter portable?

Yes, it is a handheld, portable device designed for field and lab use.

What type of battery does the SI345 use?

The device operates on three 1.5V AAA batteries.

Does the device display magnetic polarity?

Yes, the SI345 shows North/South polarity for precise analysis of magnetic fields.

Tesla Meter SI345

The Tesla Meter SI345, also known as a Gauss meter, is a high-precision instrument designed for measuring the strength and polarity of magnetic fields. Equipped with a Hall probe, this portable, handheld device is ideal for use in industrial applications such as testing speakers, magnetic separators, DC motors, and more. The SI345 offers a peak measurement function to capture maximum values during rapid magnetic field changes, ensuring reliable and accurate data for various applications.

Features

  • High Accuracy: ±1% accuracy for dependable magnetic field measurements.
  • Peak Measurement Mode: Captures peak values during rapid pulse changes.
  • Polarity Display: Shows North/South magnetic field polarity for detailed analysis.
  • Auto-Range Function: Automatically adjusts the measurement range for ease of use.
  • Over Limit Alarm: Audible alert when measurements exceed the set threshold.
  • Data Lock Function: Freezes the current reading for convenient data logging.
Measurement Range

 0-2400mT (0-24000Gs)



Resolution

 0.01mT (200mT), 0.1mT (2000mT)



Accuracy

 ±1%



Probe Type

 Standard radial Hall probe, 164mm x 19mm x 19mm



Response Time

 0.2 seconds per measurement



Display Units

 mT and Gs



Operating Temperature

 0°C to 50°C, 20-85% RH



Storage Temperature

 -20°C to 70°C, 0-85% RH



Power Supply

 3 AAA batteries (1.5V)



Dimensions

 141mm x 73mm x 28mm



Weight

 118g



Material

 ABS



Standard Radial Hall Probe: For accurate magnetic field measurement.

Datasheet : Download

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

What is the maximum measurement range of the SI345?

The SI345 measures magnetic fields up to 2400mT or 24000Gs.

Does the SI345 have a peak measurement function?

Yes, it includes a peak measurement mode to capture maximum magnetic field values during rapid changes.

What type of probe does the SI345 use?

The device comes with a standard radial Hall probe for high-accuracy measurements.

Is the tesla meter portable?

Yes, it is a handheld, portable device designed for field and lab use.

What type of battery does the SI345 use?

The device operates on three 1.5V AAA batteries.

Does the device display magnetic polarity?

Yes, the SI345 shows North/South polarity for precise analysis of magnetic fields.
