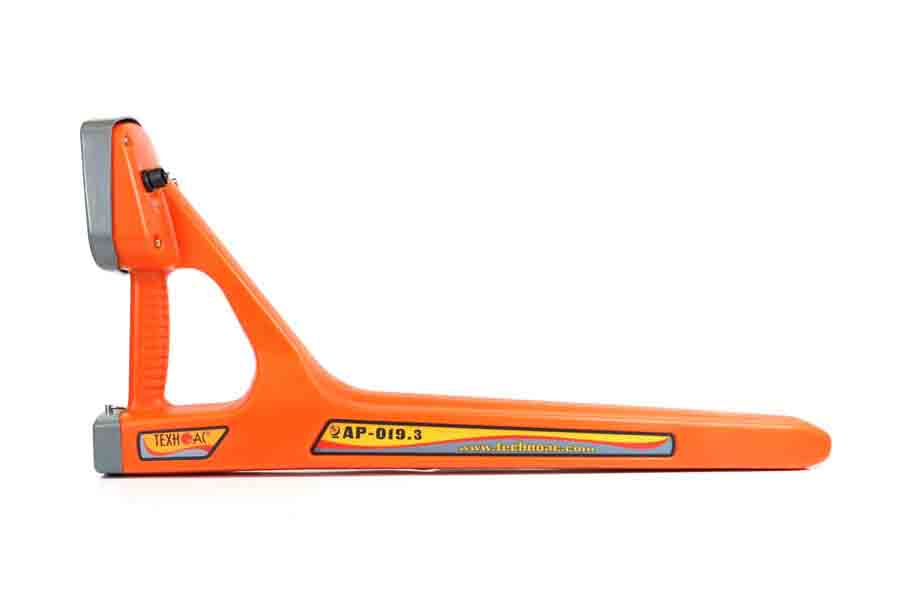

Cable locator Success CBI-309G

Name: Cable locator Success CBI-309G
Brand: Technoac
SKU: CPLCBI309G
Price: 10500.0 AED
Availability: InStock

رمز التخزين التعريفي : CPLCBI309G

يصنع : TECHNOAC

نموذج : CBI-309G

AED 0.00

AED 0.00 - AED 0.00

AED 0.00

AED 10,500.00

AED 10,500.00 - AED 10,500.00

AED 10,500.00

(بما في ذلك ضريبة القيمة المضافة)

كمية

وصف

Digital cable locator featuring our newest receiver AP-019.3 with integrated GPS/GLONASS module.

Features:

Monoblock receiver AP-019.3 with built-in GPS/GLONASS module
Visual indication of the utility axis on large LCD screen
Direct digital depth measurement up to 10 m
Location of non-conductive and non-metallic utilities with optional pushing rod and pipe sonde

Quasi-resonant frequencies of the filter	50(60) / 100(120) / 512 / 1024 / 8192 / 32768 Hz
Frequency range "Broad band"	0,04 to 8 kHz
Frequency range "Radio"	8 to 40 kHz
The maximum gain of the electric path	>100 dB
Number of built-in sensors	4
Weight	2,4 kg

وصف

Digital cable locator featuring our newest receiver AP-019.3 with integrated GPS/GLONASS module.

Features:

Monoblock receiver AP-019.3 with built-in GPS/GLONASS module
Visual indication of the utility axis on large LCD screen
Direct digital depth measurement up to 10 m
Location of non-conductive and non-metallic utilities with optional pushing rod and pipe sonde

تخصيص

Quasi-resonant frequencies of the filter	50(60) / 100(120) / 512 / 1024 / 8192 / 32768 Hz
Frequency range "Broad band"	0,04 to 8 kHz
Frequency range "Radio"	8 to 40 kHz
The maximum gain of the electric path	>100 dB
Number of built-in sensors	4
Weight	2,4 kg
