coating thickness gauge CX810

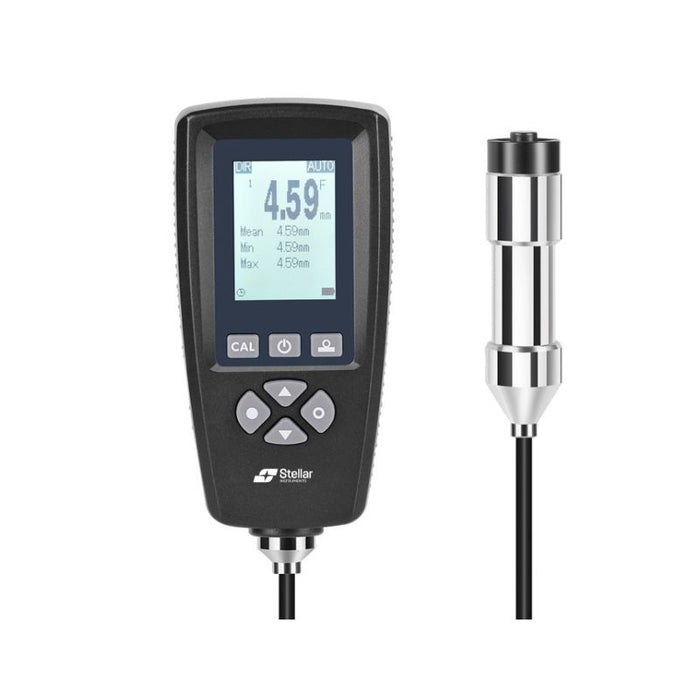

Coating Thickness Gauge CX810

رمز التخزين التعريفي : CX800
يصنع : STELLAR INSTRUMENTS
نموذج : CX810
ضمان : 1 Year
التوفر : في الأوراق المالية
Stellar Instruments
AED 1,800.00 - AED 1,800.00
AED 1,800.00
AED 1,800.00 - AED 1,800.00
AED 1,800.00
(بما في ذلك ضريبة القيمة المضافة)

Coating Thickness Gauge CX810

The CX810 Coating Thickness Gauge is an advanced device for non-destructive measurement of coating thickness. It precisely measures non-magnetic coatings like paint, enamel, and chrome on ferrous metals, as well as insulating coatings on non-ferrous metals. Designed with a high-resolution external probe, it integrates magnetic induction and eddy current technologies for unmatched accuracy and performance. With a measurement range of up to 5000μm for ferrous (Fe) and 3000μm for non-ferrous (NFe) metals, this gauge is ideal for industrial, automotive, and laboratory applications.

Features

  • Wide Measurement Range: Measures up to 5000μm for Fe and 3000μm for NFe materials.
  • High Accuracy: ±(2%+1μm) for precise coating analysis.
  • Enhanced Resolution: 0.1μm for detailed measurements below 100μm.
  • Dual Technology Probe: Combines magnetic induction and eddy current effects for versatility.
  • Comprehensive Data Display: Curve, bar chart, and trend chart options for statistical analysis.
  • Backlit Display: 2.4-inch color screen with adaptive brightness for clear visibility in any lighting.
  • Flexible Units: Provides measurements in μm, mils, mm, and inches.
  • Custom Alerts: Configurable upper and lower limits with audible notifications.
  • Portable Design: Lightweight housing with ergonomic build for on-the-go use.
  • Long Battery Life: Powered by two 1.5V AA alkaline batteries.
Measurement Range
Fe

 0–5000μm



NFe

 0–3000μm



Resolution

0.1μm (0–99.9μm)





1μm (>100μm)



Accuracy

 ±(2%+1μm)



Minimum Substrate Thickness
Fe

 0.20mm



NFe

 0.03mm



Probe Diameter

 17mm



Probe Type

 External with integrated magnetic induction and eddy current technologies



Units Supported

 μm, mils, mm, inches



Display

 2.4-inch color screen with self-adaptive brightness



Statistics Features

 Maximum, minimum, mean, standard deviation, coefficient of variation



Calibration

 Zero calibration and multi-point calibration



Weight

 200g



Power Supply

 2 x 1.5V AA alkaline batteries



Dimensions
Housing

 113 x 53 x 25 mm



Wire

 ⌀3.5 x 1000 mm



Probe

 ⌀17 x 67 mm



Standards/Certifications

 CE, ROHS, ISO 2178, ISO 2360, GB/T 4956-2003, GB/T 4957-2003



  • Main unit
  • External probe
  • 2 x 1.5V AA alkaline batteries
  • Carrying case
  • User manual
Datasheet : Download

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

What coatings can the CX810 measure?

The CX810 measures non-magnetic coatings on ferrous metals and insulating coatings on non-ferrous metals.

What is the maximum measurement range?

It can measure up to 5000μm on ferrous metals and 3000μm on non-ferrous metals.

What kind of display does the device have?

The CX810 features a 2.4-inch color screen with adaptive backlight brightness.

Can the device store and analyze data?

Yes, it provides statistical analysis and visual data representation through charts.

What is the device's accuracy?

The accuracy is ±(2%+1μm), ensuring reliable results for every measurement.

How is the CX810 powered?

The device is powered by two 1.5V AA alkaline batteries.
