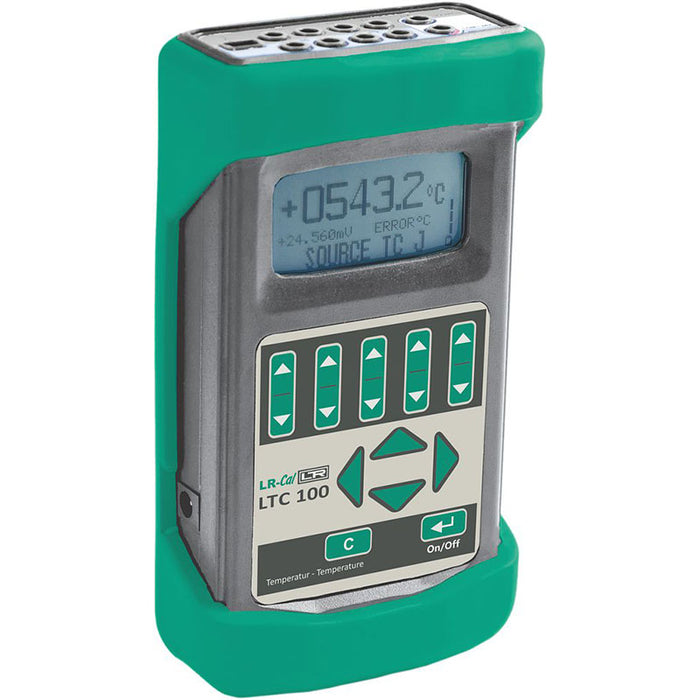

Portable Multifunction Temperatur Calibrator LR-Cal LTC 100

Name: Portable Multifunction Temperatur Calibrator LR-Cal LTC 100
Brand: LR Cal
SKU: TCLRLT100
Price: 6900.0 AED
Availability: InStock

رمز التخزين التعريفي : TCLRLT100

يصنع : LR CAL

نموذج : LTC 100

التوفر : في الأوراق المالية

AED 1,300.00 - AED 1,300.00

AED 1,300.00

AED 6,900.00

AED 6,900.00 - AED 6,900.00

AED 6,900.00

(بما في ذلك ضريبة القيمة المضافة)

كمية

وصف

تخصيص

جداول البيانات

Reviews

Portable Multifunction Temperatur Calibrator LR-Cal LTC 100

The temperature calibrator LR-Cal LTC 100 simultaneously measures and sources ten types of thermocouples and seven resistance temperaure detectors (RTD), whilst automatically capturing the calibration results. It measures milliamps whilst sourcing or simulating millivolts, TCs, RTDs or ohms to calibrate transmitters.

The LR-Cal LTC 100 logging facility stores data on the SD card supplied, which is easily downloaded to a PC via the onboard USB port and usable in most of the common spreadsheet formats.

The trend feature is ideal for graphing temperature profiles and PID controller optimization with a programmable timebase. In addition, the LR-Cal LTC 100 has the functionality necessary to install and maintain all powered and non-powered transducers using the built-in 24V loop power supply.

The multifunctional Temperature Calibrator LR-Cal LTC 100 is the economical choice for people wanting to do industrial field or workshop calibration.

MEASURING	Range:	Accuracy:	Resolution:
Milliamps mA	0...24 mA (Impedance ±17 Ohm)	0.02% FS	1 µA
Millivolts mV	-10...+100 mV (> 1 MegaOhm)	0.01% FS	1 µV
Thermocouples	Types J, K, T, E, N, U, L	0.1% FS *)	0.1°C
Thermocouples	Types B, R, S	1% FS *)	0.1°C
Resistance ****)	0...400.00 Ohm 0...2200.0 Ohm	0.05% FS 0,05% FS	0.01 Ohm 0.1 Ohm
RTD ****)	Types Pt50, Pt100, Pt200, Pt500, Pt1000, Ni100, Ni120	0.1% FS	0.01°C
Continuity	with a 100 Ohm trigger. Visual and audible confirmation
SOURCING	Range:	Accuracy:	Resolution:
Milliamps mA	0...24 mA (max. load 500 Ohm)	0.02% FS	1 µA
Millivolts mV	-10...+100 mV (min. load 100 Ohm)	0.01% FS	1 µV
Thermocouples	Types J, K, T, E, N, U, L	0.1% FS *)	0.1°C
Thermocouples	Types B, R, S	1% FS *)	0.1°C
Resistance	10.00...400.00 Ohm ) 400.0...2200.0 Ohm )	0.05% FS ) 0.05% FS )	0.01 Ohm 0.1 Ohm
RTD	Types Pt50, Pt100, Pt200, Pt500, Pt1000, Ni100, Ni120	0.1% FS	0.01°C
General Data
Isolation	Max. 100 VDC between all input and output circuits
Thermocouple Extender	Cold junction compensation Pt100 DIN EN 60751, 100 Ohm at 0°C, nom. resistance drift 0.04% after 1000 h at 500°C
Power supply	Type: Lithium-Ion battery Charging time: approx. 5 h Life time: typical 8 h (depending on used functions)
Mains charger	Charger input at calibrator: 10...15 VDC Charger input: 115...230 VAC; 0.5 A; 50/60 Hz Charger output: 12 VDC at 1.5 A
Optional car charger	12 VDC at 1 A via cigarette lighter plug
Temperature ranges	Storage: -40...+50°C incl. battery Usage: 0...50°C
Relative humidity	0...85% r.F. (non-condensing)
Housing	ABS-plastic OL94V-0 flame retardant, IP 54 dust and splash proof
Rubber boot	green
Dimension	without rubber boot 149 x 34 x 77 mm with rubber boot 155 x 43 x 86 mm
Weight	approx. 340 g
