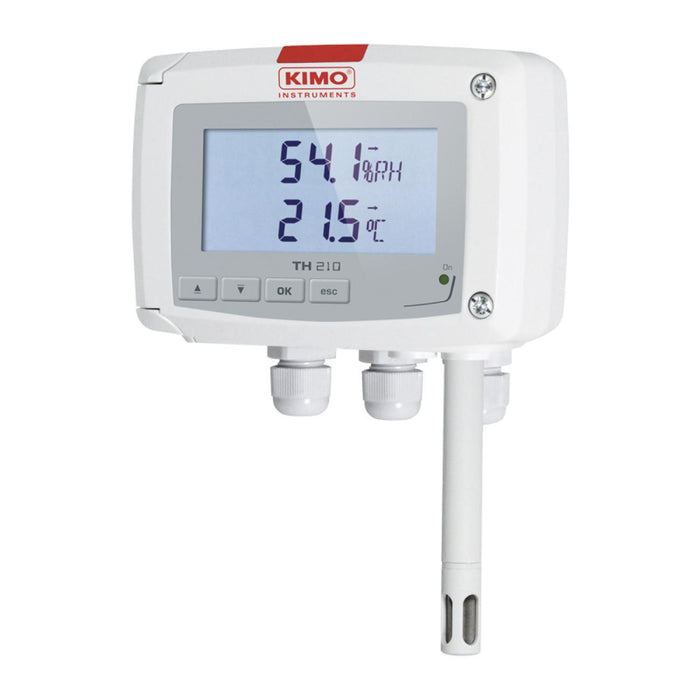

The TH 210-R Humidity and Temperature Transmitter is a high-precision instrument designed for monitoring and controlling environmental conditions in HVAC systems, clean rooms, industrial processes, and other critical environments. This versatile transmitter measures both relative humidity and temperature with exceptional accuracy, providing real-time data that ensures optimal control of environmental conditions. The TH 210-R is equipped with robust ABS V0 housing, rated IP65, making it durable and resistant to harsh conditions. Available in both ambient and remote models, with or without an LCD display, this transmitter offers flexible installation options to suit various application needs.
| Relative Humidity Measuring Range | 0 to 100 %RH
|
| Relative Humidity Accuracy | ±1.5% RH (from 5 to 95% RH and from 15 °C to 25 °C)
|
| Temperature Measuring Range |
|
| Ambient Model | -20 to +80 °C
|
| Remote Model with Polycarbonate Probe | -20 to +80 °C
|
| Remote Model with Stainless Steel Probe | -40 to +180 °C
|
| Temperature Accuracy | ±0.3% of reading ±0.25 °C
|
| Response Time |
|
| Humidity | < 10 seconds (from 10 to 80% RH, Vair = 2 m/s)
|
| Temperature | T90 = 0.9 second for Vair = 1 m/s
|
| Output Options | 2 x 0/4-20 mA or 2 x 0-5/10 V (4 wires)
|
| Power Supply |
|
| TH 210-BXX models | 24 Vac/Vdc ±10%
|
| TH 210-HXX models | 100-240 Vac, 50-60 Hz
|
| Housing Material | ABS V0 (UL94)
|
| Protection Rating | IP65
|
| Display (Optional) | 75 x 40 mm LCD, 20 digits, with 10 mm height for values and 5 mm for units
|
| Probe Dimensions |
|
| Standard Probe | Ø 13 mm, length 100 mm
|
| Remote Probe | Ø 13 mm, length 150 mm or 300 mm (custom lengths available on request)
|
| Weight | 340 g
|
