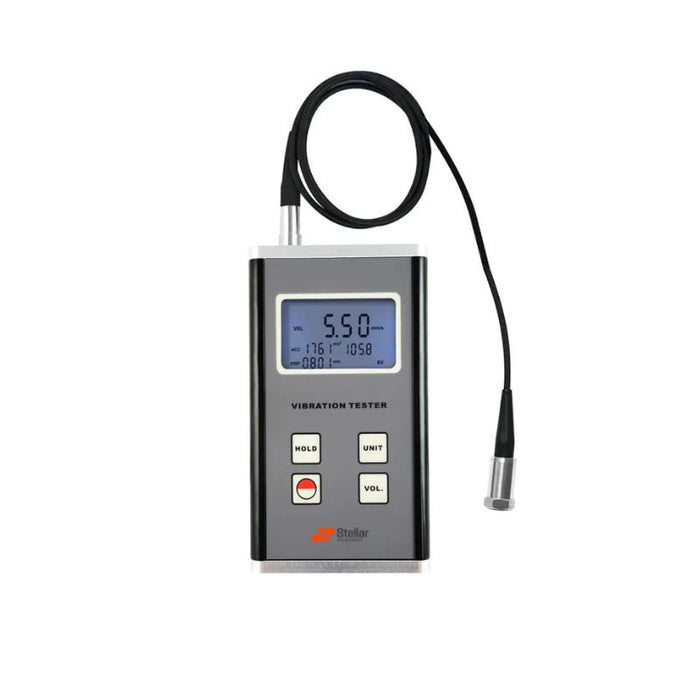

Vibration Meter VM370

Name: Vibration Meter VM370
Brand: Stellar Instrument
SKU: VMSIVM370
Price: 2600.0 AED
Availability: InStock

رمز التخزين التعريفي : VMSIVM370

يصنع : STELLAR INSTRUMENT

نموذج : VM370

ضمان : 1

التوفر : في الأوراق المالية

AED 800.00 - AED 800.00

AED 800.00

AED 2,600.00

AED 2,600.00 - AED 2,600.00

AED 2,600.00

(بما في ذلك ضريبة القيمة المضافة)

كمية

وصف

Features :

Can display the parameters of Displacement, Velocity and Acceleration simultaneously.
In accordance with ISO 2954, used for periodic measurements, to detect out-of-balance, misalignment and other mechanical faults in rotating machines.
Specially designed for easy on site vibration measurement of all rotating machinery for quality control,commissioning, and predictive maintenance purposes.
Individual high quality ccelerometer for accurate and repeatable measurements.
Unaffected by the external magnetic field

Sensor type	Piezoelectric Transducer
Measuring Parameters & Range	Acceleration :0.1~400 m/s² 0.3~1312 ft/s² 0.0~40 g Equivalent Peak Velocity : 0.01~400 mm/s 0.004~16.0 inch/s True RMS Displacement : 0.001~4.0 mm 0.04~160.0 mil Equivalent Peak-peak
Frequency Range	Frequency : 5 Hz ~ 1k Hz Acceleration: 10 Hz ~ 10k Hz Velocity: 10 Hz ~ 1k Hz Displacement: 10 Hz ~ 1k Hz
Metric / Imperial Conversion	Yes
Max. Value Hold	Yes
Operating Conditions	Temperature: 0~50 °C Humidity: <90 %RH
Power Supply	2 x 1.5V AA size (UM-3) Battery
Dimensions	130 x 76 x 32 mm
Weight	340 g (Not Including Batteries)
Accessories	Main Unit, Magnetic Suction Seat, 3-Axis Piezoelectric Accelerometer Probe (Cone), Probe (Spherical), Carrying Case, Manual Book

وصف

Features :

Can display the parameters of Displacement, Velocity and Acceleration simultaneously.
In accordance with ISO 2954, used for periodic measurements, to detect out-of-balance, misalignment and other mechanical faults in rotating machines.
Specially designed for easy on site vibration measurement of all rotating machinery for quality control,commissioning, and predictive maintenance purposes.
Individual high quality ccelerometer for accurate and repeatable measurements.
Unaffected by the external magnetic field

تخصيص

Sensor type	Piezoelectric Transducer
Measuring Parameters & Range	Acceleration :0.1~400 m/s² 0.3~1312 ft/s² 0.0~40 g Equivalent Peak Velocity : 0.01~400 mm/s 0.004~16.0 inch/s True RMS Displacement : 0.001~4.0 mm 0.04~160.0 mil Equivalent Peak-peak
Frequency Range	Frequency : 5 Hz ~ 1k Hz Acceleration: 10 Hz ~ 10k Hz Velocity: 10 Hz ~ 1k Hz Displacement: 10 Hz ~ 1k Hz
Metric / Imperial Conversion	Yes
Max. Value Hold	Yes
Operating Conditions	Temperature: 0~50 °C Humidity: <90 %RH
Power Supply	2 x 1.5V AA size (UM-3) Battery
Dimensions	130 x 76 x 32 mm
Weight	340 g (Not Including Batteries)
Accessories	Main Unit, Magnetic Suction Seat, 3-Axis Piezoelectric Accelerometer Probe (Cone), Probe (Spherical), Carrying Case, Manual Book
