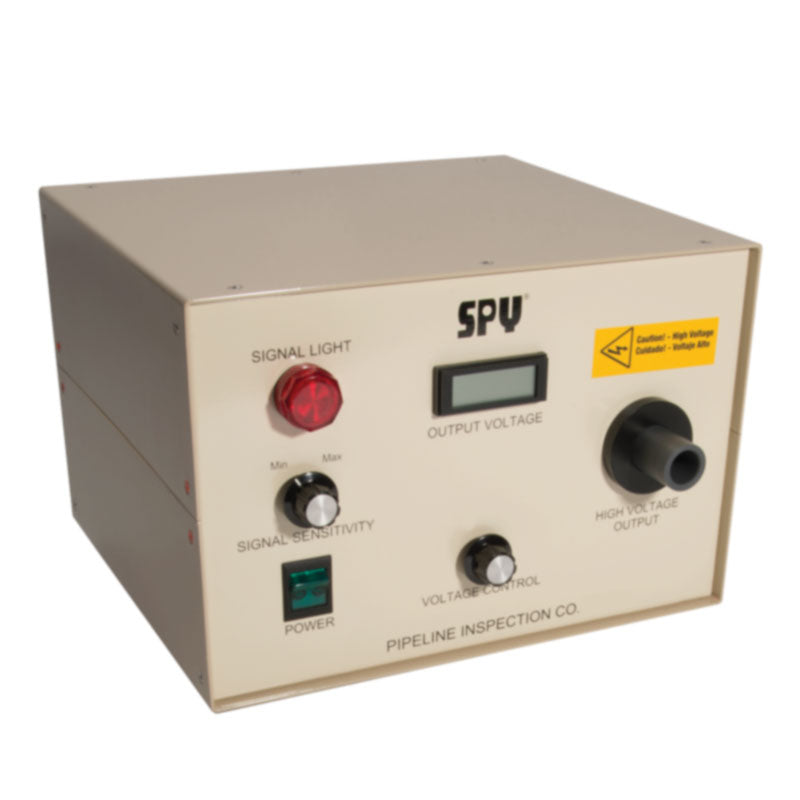

16-400 Mils (.41mm-10.16mm) for Tape, Extruded and Coal Tar Type Coatings For thicker coatings the Model 125 has fully adjustable output voltage from 5 kilovolt to 25 kilovolts. For very demanding conditions, a sensitivity switch offers additional control. State-of-the-art holiday detector, in a sturdy case, with an easy-to-read, easy-to-use control panel and heavy-duty three wire power cord. A loud klaxon horn, that can be heard above normal plant noise, and a spring electrode wand with twenty feet of high voltage cable complete the system.
LEADING-EDGE CIRCUITRY, Almost eliminates maintenance and downtime.
OPERATES ON STANDARD 120 VAC, No batteries are required.
OUTPUT VOLTAGE ,Automatically regulated for 2” to 60” pipe sizes.
PERMANENT OR SEMI-PERMANENT INSTALLATION, Extremely versatile for automatic or manual operation.
INTERNAL HEATER, Prevents moisture build-up when the unit is not in use.
| Voltage Type |
PULSE |
|---|---|
| Voltage Range |
5 – 25kV |
| Voltage Output Accuracy |
±5% |
| Coating Range (Min-Max) |
16-400 mils (.41mm-10.16mm) |
| Unit Dimensions (L x W x H) |
12” x 13” x 8.5” |
| Unit Weight |
9.6 lbs |
16-400 Mils (.41mm-10.16mm) for Tape, Extruded and Coal Tar Type Coatings For thicker coatings the Model 125 has fully adjustable output voltage from 5 kilovolt to 25 kilovolts. For very demanding conditions, a sensitivity switch offers additional control. State-of-the-art holiday detector, in a sturdy case, with an easy-to-read, easy-to-use control panel and heavy-duty three wire power cord. A loud klaxon horn, that can be heard above normal plant noise, and a spring electrode wand with twenty feet of high voltage cable complete the system.
LEADING-EDGE CIRCUITRY, Almost eliminates maintenance and downtime.
OPERATES ON STANDARD 120 VAC, No batteries are required.
OUTPUT VOLTAGE ,Automatically regulated for 2” to 60” pipe sizes.
PERMANENT OR SEMI-PERMANENT INSTALLATION, Extremely versatile for automatic or manual operation.
INTERNAL HEATER, Prevents moisture build-up when the unit is not in use.
| Voltage Type |
PULSE |
|---|---|
| Voltage Range |
5 – 25kV |
| Voltage Output Accuracy |
±5% |
| Coating Range (Min-Max) |
16-400 mils (.41mm-10.16mm) |
| Unit Dimensions (L x W x H) |
12” x 13” x 8.5” |
| Unit Weight |
9.6 lbs |
