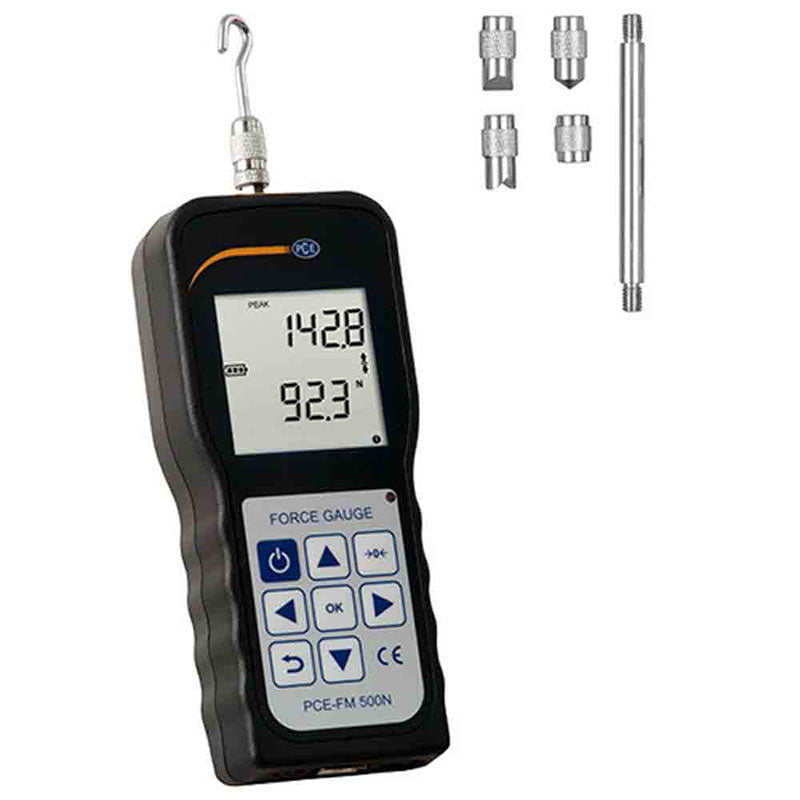

Force Gauge PCE-FM 500N

The PCE-FM 500N force gage is a microprocessor controlled dynamometer with fast and accurate readout of tensile and compressive forces in N, Kg and lb. The display of the force gage is easily readable by the large numbers. The force gage is equipped with an internal load cell for tensile and compression tests. The load cell of the force gage PCE-FM 500N is equipped with a M6 threaded head. Thus, the force gage can also be screwed into other brackets, test facilities and test stands and. The force gage is operated with an internal battery or the external power supply.

This force gage also has a USB interface for data transmission. With the interface and the software of the force measuring devices, the data can be transmitted quickly and easily to a PC. With the help of the optionally available mounting plate, the load cell can be adapted to decaying test benches. These test stands are ideal for tensile and compressive force measurement in quality control and laboratory testing or product development.

•  Differently shaped measuring adapters
•  Downloadable evaluation software
•  Device for mounting on test stands
•  Peak measurement
•  Power supply via charging adapter
•  Delivery with extension rod
•  Evaluation via USB interface
•  Fast measured value display
