M73 Multifunctional Earth Resistance & RCD Tester

Name: M73 Multifunctional Earth Resistance & RCD Tester
Brand: Ht-instruments
SKU: HV000073
Price: 2900.0 AED
Availability: InStock

رمز التخزين التعريفي : HV000073

يصنع : HT-INSTRUMENTS

نموذج : M73

التوفر : في الأوراق المالية

AED 0.00 - AED 0.00

AED 0.00

AED 2,900.00

AED 2,900.00 - AED 2,900.00

AED 2,900.00

(بما في ذلك ضريبة القيمة المضافة)

كمية

وصف

تخصيص

جداول البيانات

Reviews

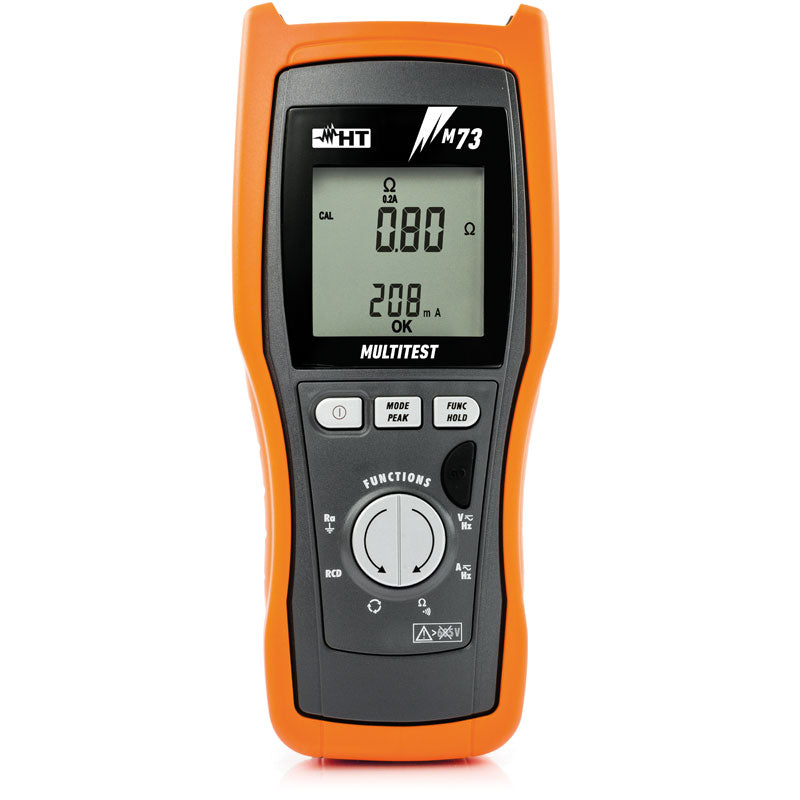

M73 Multifunctional Earth Resistance & RCD Tester

M73 has been developed for operators who mainly work on private installations. M73 is very easy to use. It is very small in size and it carries out all necessary tests to establish COMPLIANCE of an electric system.By always using it before starting working on an already existing system and at the end of the job, this device will guarantee the necessary safety to both operators and users of the electric systems.Thanks to its small size, this device offers many operating opportunities.

M73 is also used to test the safety of electric system. It is capable of measuring non-trip earth resistance. Carrying out tests on RCDs type A and AC and measuring Insulation and Continuity. At the end of the test, the device shows all results with the indication of compliance or non-compliance with the standards with simple symbols OK or NOT OK.

TRMS	Yes
Measuring range of verifiable rated currents	30,30×5,100,300mA
Tripping time of type A, AC General and Selective RCDs	A = 30mA AC = 300mA only general
Ramp test for tipping current of RCDs type A, AC General and Selective	A = 30mA AC = 30mA only general
Non-trip earth resistance	Yes
Contact voltage	Yes
Leakage current with optional clamp meter	Yes
DC/AC TRMS voltage and current	Yes
Phase sequence	Yes
Frequency	Yes
Resistance	Yes
Continuity with buzzer	Yes
Data HOLD, MAX/MIN/AVG	Yes
Measurement of voltage and current PEAK	Yes
Measurement category	CAT III
Guidelines	CEI 64-8 CEI 64-8 612.3 .4 .5 CE MARK EMC 2014/30/EU EMC: IEC/EN61326 EN61008 IEC/EN61010-1 IEC/EN61557-1 IEC/EN61557-3 IEC/EN61557-6 IEC/EN61557-7 LVD 2014/35/EU UNE20460
