process calibrator HT8051
في الأوراق المالية

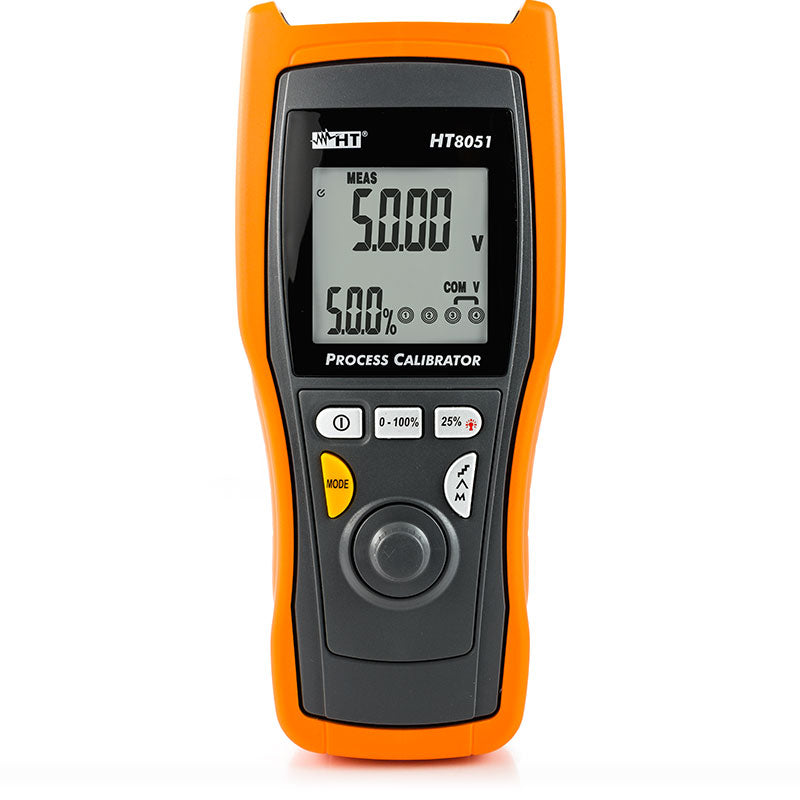

Multifunction Process Calibrator 4-20mA Current Generator - HT8051

رمز التخزين التعريفي : HT8051
يصنع : HT-INSTRUMENTS
نموذج : HT8051
ضمان : 1 Year
التوفر : في الأوراق المالية
HT-Instruments
AED 100.00 - AED 100.00
AED 100.00
AED 2,500.00
AED 2,500.00 - AED 2,500.00
AED 2,500.00
(بما في ذلك ضريبة القيمة المضافة)

Multifunction Process Calibrator 4-20mA Current Generator - HT8051

The HT8051 is a versatile multifunction process calibrator designed for precision testing and calibration of electrical and process control systems. This device generates and measures DC current in the 4-20mA range, making it ideal for calibrating transmitters, controllers, and other process instruments. With its robust construction, high accuracy, and user-friendly features, the HT8051 is a must-have tool for engineers and technicians in industrial settings.

Features

  • DC Current Generation: Programmable output for 4-20mA current loops.
  • High Accuracy: Ensures precise calibration with ±(0.05% reading + 5 digits) accuracy.
  • Ramp Function: Includes linear and step ramps for dynamic testing.
  • Loop Power Supply: Provides loop power for testing and calibration.
  • Large LCD Display: 5-digit display with automatic polarity indication.
  • Data Logging: Internal memory to save and recall calibration data.
  • Auto Backlight: Automatically activates the backlit display in low light conditions.
  • Safety Rated: CAT IV 600V and CAT III 1000V for high safety standards.

Multifunction Process Calibrator 4-20mA Current Generator

DC Voltage Range

 50mV to 1000V



AC TRMS Voltage Range

 50mV to 1000V (40Hz to 10kHz)



DC Current Range

 50mA to 1A



AC TRMS Current Range

 50mA to 1A (40Hz to 10kHz)



Resistance Range

 500Ω to 50MΩ



Frequency Range

 5Hz to 100kHz



Generated DC Current

 0 to 20mA with ±(0.05% reading + 5 digits) accuracy



Dimensions

 207 x 95 x 52 mm



Weight

 630g (including batteries)



Power Supply

 4 x 1.5V alkaline batteries type AA IEC LR6



Operating Temperature

 -10°C to 50°C



Storage Temperature

 -20°C to 60°C



Protection Degree

 CAT IV 600V, CAT III 1000V



  • Test Leads
  • Alligator Clips
  • Carrying Case
  • User Manual
  • Calibration Certificate
  • 4 x 1.5V AA Alkaline Batteries
Download Data Sheet : Download
Download User Manual : Download

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

Q1. What is the accuracy of the HT8051 in generating DC current?

The HT8051 has an accuracy of ±(0.05% reading + 5 digits) when generating DC current.

Q2. Can the HT8051 provide loop power for testing?

Yes, the HT8051 provides loop power supply for testing and calibration.

Q3. What is the maximum voltage range for AC TRMS measurements?

The HT8051 can measure AC TRMS voltage up to 1000V.

Q4. Does the HT8051 support data logging?

Yes, it has internal memory to save and recall calibration data.

Q5. What safety ratings does the HT8051 have?

The HT8051 is rated CAT IV 600V and CAT III 1000V, ensuring high safety standards.

Q6. What types of ramps are available for dynamic testing?

The HT8051 includes both linear and step ramps for dynamic testing, with options for slow and fast ramping.

Multifunction Process Calibrator 4-20mA Current Generator - HT8051

The HT8051 is a versatile multifunction process calibrator designed for precision testing and calibration of electrical and process control systems. This device generates and measures DC current in the 4-20mA range, making it ideal for calibrating transmitters, controllers, and other process instruments. With its robust construction, high accuracy, and user-friendly features, the HT8051 is a must-have tool for engineers and technicians in industrial settings.

Features

  • DC Current Generation: Programmable output for 4-20mA current loops.
  • High Accuracy: Ensures precise calibration with ±(0.05% reading + 5 digits) accuracy.
  • Ramp Function: Includes linear and step ramps for dynamic testing.
  • Loop Power Supply: Provides loop power for testing and calibration.
  • Large LCD Display: 5-digit display with automatic polarity indication.
  • Data Logging: Internal memory to save and recall calibration data.
  • Auto Backlight: Automatically activates the backlit display in low light conditions.
  • Safety Rated: CAT IV 600V and CAT III 1000V for high safety standards.

Multifunction Process Calibrator 4-20mA Current Generator

DC Voltage Range

 50mV to 1000V



AC TRMS Voltage Range

 50mV to 1000V (40Hz to 10kHz)



DC Current Range

 50mA to 1A



AC TRMS Current Range

 50mA to 1A (40Hz to 10kHz)



Resistance Range

 500Ω to 50MΩ



Frequency Range

 5Hz to 100kHz



Generated DC Current

 0 to 20mA with ±(0.05% reading + 5 digits) accuracy



Dimensions

 207 x 95 x 52 mm



Weight

 630g (including batteries)



Power Supply

 4 x 1.5V alkaline batteries type AA IEC LR6



Operating Temperature

 -10°C to 50°C



Storage Temperature

 -20°C to 60°C



Protection Degree

 CAT IV 600V, CAT III 1000V



  • Test Leads
  • Alligator Clips
  • Carrying Case
  • User Manual
  • Calibration Certificate
  • 4 x 1.5V AA Alkaline Batteries
Download Data Sheet : Download
Download User Manual : Download

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

Q1. What is the accuracy of the HT8051 in generating DC current?

The HT8051 has an accuracy of ±(0.05% reading + 5 digits) when generating DC current.

Q2. Can the HT8051 provide loop power for testing?

Yes, the HT8051 provides loop power supply for testing and calibration.

Q3. What is the maximum voltage range for AC TRMS measurements?

The HT8051 can measure AC TRMS voltage up to 1000V.

Q4. Does the HT8051 support data logging?

Yes, it has internal memory to save and recall calibration data.

Q5. What safety ratings does the HT8051 have?

The HT8051 is rated CAT IV 600V and CAT III 1000V, ensuring high safety standards.

Q6. What types of ramps are available for dynamic testing?

The HT8051 includes both linear and step ramps for dynamic testing, with options for slow and fast ramping.
