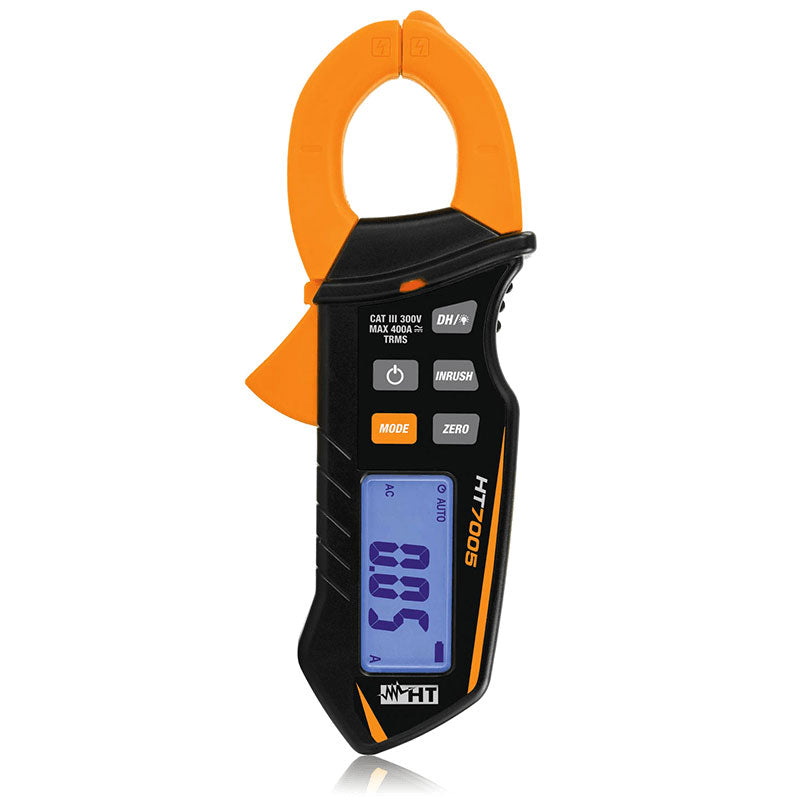

TRMS Mini Clamp Meter AC/DC 400A - HT7005
في الأوراق المالية

TRMS Mini Clamp Meter AC/DC 400A - HT7005

رمز التخزين التعريفي : HT7005
يصنع : HT-INSTRUMENTS
نموذج : HT7005
ضمان : 1 Year
التوفر : في الأوراق المالية
HT-Instruments
AED 0.00 - AED 0.00
AED 0.00
AED 575.00
AED 575.00 - AED 575.00
AED 575.00
(بما في ذلك ضريبة القيمة المضافة)

TRMS Mini Clamp Meter AC/DC 400A - HT7005

The HT7005 TRMS Mini Clamp Meter is a compact and reliable tool for measuring both AC and DC currents up to 400A. Designed for professional electricians and technicians, this meter provides precise measurements with True RMS accuracy, ensuring accurate readings even in complex electrical environments. Equipped with inrush current detection and non-contact voltage detection (NCV), the HT7005 is ideal for on-site testing, troubleshooting, and maintenance in residential, commercial, and industrial settings.

Features:

  • True RMS Measurement: Ensures accuracy even in non-sinusoidal waveforms.
  • Inrush Current Detection: Detects starting currents accurately.
  • Non-Contact Voltage Detection (NCV): Detects live wires safely.
  • Backlit LCD Display: Easy-to-read display in low light conditions.
  • Data Hold and Auto Power Off: For convenient and energy-saving operation.

TRMS Mini Clamp Meter AC/DC 400A - HT7005

DC Current Range

 40.00A to 400.0A



AC TRMS Current Range

 40.00A to 400.0A (50Hz to 60Hz)



Inrush Current Range

 40A to 400A (accuracy ±10%)



Display

 3¾ digit LCD, 4000 counts with decimal point and backlight



Conductor Diameter

 Maximum 20mm



Power Supply

 2 x 1.5V AAA batteries



Battery Life

 Approx. 85 hours (with backlight), 240 hours (without backlight)



Dimensions

 155mm x 60mm x 25mm



Weight

 140g (including batteries)



Operating Temperature

 5°C to 40°C, <80% RH



Safety Standards

 IEC/EN61010-1, CAT III 300V



Protection Rating

 IP30



  • Test leads.
  • Carrying case.
  • Batteries (2 x 1.5V AAA).
  • User manual.
Download Instruction Manual : Download
Download Data Sheet : Download

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

TRMS Mini Clamp Meter AC/DC 400A - HT7005

The HT7005 TRMS Mini Clamp Meter is a compact and reliable tool for measuring both AC and DC currents up to 400A. Designed for professional electricians and technicians, this meter provides precise measurements with True RMS accuracy, ensuring accurate readings even in complex electrical environments. Equipped with inrush current detection and non-contact voltage detection (NCV), the HT7005 is ideal for on-site testing, troubleshooting, and maintenance in residential, commercial, and industrial settings.

Features:

  • True RMS Measurement: Ensures accuracy even in non-sinusoidal waveforms.
  • Inrush Current Detection: Detects starting currents accurately.
  • Non-Contact Voltage Detection (NCV): Detects live wires safely.
  • Backlit LCD Display: Easy-to-read display in low light conditions.
  • Data Hold and Auto Power Off: For convenient and energy-saving operation.

TRMS Mini Clamp Meter AC/DC 400A - HT7005

DC Current Range

 40.00A to 400.0A



AC TRMS Current Range

 40.00A to 400.0A (50Hz to 60Hz)



Inrush Current Range

 40A to 400A (accuracy ±10%)



Display

 3¾ digit LCD, 4000 counts with decimal point and backlight



Conductor Diameter

 Maximum 20mm



Power Supply

 2 x 1.5V AAA batteries



Battery Life

 Approx. 85 hours (with backlight), 240 hours (without backlight)



Dimensions

 155mm x 60mm x 25mm



Weight

 140g (including batteries)



Operating Temperature

 5°C to 40°C, <80% RH



Safety Standards

 IEC/EN61010-1, CAT III 300V



Protection Rating

 IP30



  • Test leads.
  • Carrying case.
  • Batteries (2 x 1.5V AAA).
  • User manual.
Download Instruction Manual : Download
Download Data Sheet : Download
