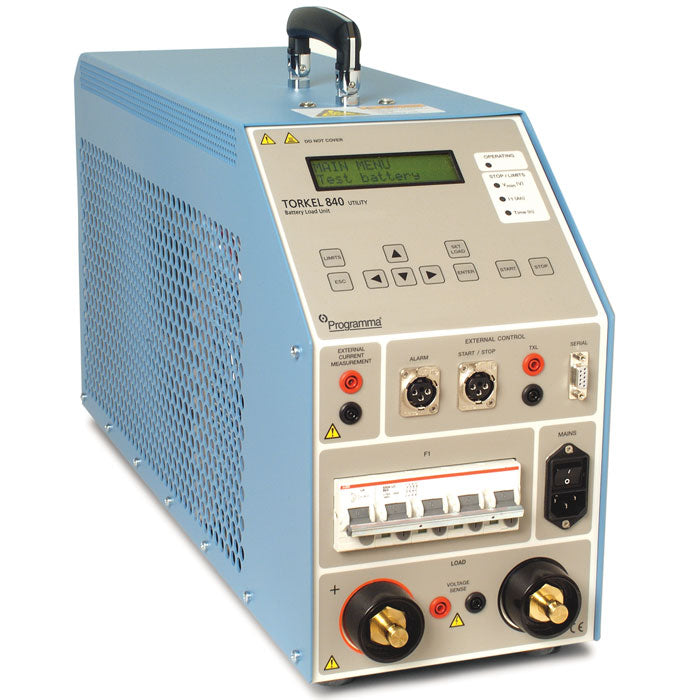

TORKEL 840 Battery Load Units Rental
SKU : TORKEL 840
MODEL : TORKEL 840
AVAILABILITY : IN STOCK
TORKEL 840 Battery Load Units Rental
The TORKEL 840 Battery Load Units are state-of-the-art tools designed to test the capacity and performance of battery systems in power plants and transformer substations. These units provide reliable and accurate discharge testing, which is essential for maintaining the efficiency and longevity of battery systems. The TORKEL 840 is ideal for stationary battery systems up to 250V, while the TORKEL 860 is suited for a wider range of systems up to 480V, offering superior portability and flexibility. Both models can conduct tests at constant current, power, or resistance, and can be expanded with additional load units for larger battery banks.
2. Features
- In-Service Testing: Allows batteries to be tested without disconnecting from the equipment they serve.
- Adjustable Parameters: User-defined alarm and shutdown points prevent excessive discharge.
- Expandable: Easily link multiple TORKEL units or TXL extra load units for larger battery banks.
- Real-Time Monitoring: View test parameters and results in real-time using TORKEL Win software.
- Data Management: Save results to a PC for analysis, report generation, and storage.
- Versatile Operation: Conduct tests at constant current, power, resistance, or custom load profiles.
| Operating Voltage Range: | |
| TORKEL 840 | 12 to 250V DC
|
| TORKEL 860 | 12 to 480V DC
|
| Maximum Discharge Current | 110A (expandable with additional units)
|
| Maximum Power | 15kW
|
| Current Measurement Range | 0.0 - 2999A
|
| Voltage Measurement Range | 0.0 - 60V (basic accuracy ±0.5% + 0.1V)
|
0.0 - 500V (basic accuracy ±0.5% + 1V)
| |
| Operating Temperature | 0°C to +40°C (32°F to 104°F)
|
| Storage Temperature | -40°C to +70°C (-40°F to 158°F)
|
| Humidity | 5% to 95% RH, non-condensing
|
| Dimensions: | |
| Instrument | 210 x 353 x 700 mm
|
| Transport Case | 265 x 460 x 750 mm
|
| Weight: | |
| Instrument | 21.5 kg (47.4 lbs)
|
| With Accessories and Transport Case | 38 kg (83.8 lbs)
|
| Display | LCD with multilingual support (English, French, German, Spanish, Swedish)
|
TORKEL 840 Battery Load Units Rental
The TORKEL 840 Battery Load Units are state-of-the-art tools designed to test the capacity and performance of battery systems in power plants and transformer substations. These units provide reliable and accurate discharge testing, which is essential for maintaining the efficiency and longevity of battery systems. The TORKEL 840 is ideal for stationary battery systems up to 250V, while the TORKEL 860 is suited for a wider range of systems up to 480V, offering superior portability and flexibility. Both models can conduct tests at constant current, power, or resistance, and can be expanded with additional load units for larger battery banks.
2. Features
- In-Service Testing: Allows batteries to be tested without disconnecting from the equipment they serve.
- Adjustable Parameters: User-defined alarm and shutdown points prevent excessive discharge.
- Expandable: Easily link multiple TORKEL units or TXL extra load units for larger battery banks.
- Real-Time Monitoring: View test parameters and results in real-time using TORKEL Win software.
- Data Management: Save results to a PC for analysis, report generation, and storage.
- Versatile Operation: Conduct tests at constant current, power, resistance, or custom load profiles.
| Operating Voltage Range: | |
| TORKEL 840 | 12 to 250V DC
|
| TORKEL 860 | 12 to 480V DC
|
| Maximum Discharge Current | 110A (expandable with additional units)
|
| Maximum Power | 15kW
|
| Current Measurement Range | 0.0 - 2999A
|
| Voltage Measurement Range | 0.0 - 60V (basic accuracy ±0.5% + 0.1V)
|
0.0 - 500V (basic accuracy ±0.5% + 1V)
| |
| Operating Temperature | 0°C to +40°C (32°F to 104°F)
|
| Storage Temperature | -40°C to +70°C (-40°F to 158°F)
|
| Humidity | 5% to 95% RH, non-condensing
|
| Dimensions: | |
| Instrument | 210 x 353 x 700 mm
|
| Transport Case | 265 x 460 x 750 mm
|
| Weight: | |
| Instrument | 21.5 kg (47.4 lbs)
|
| With Accessories and Transport Case | 38 kg (83.8 lbs)
|
| Display | LCD with multilingual support (English, French, German, Spanish, Swedish)
|
