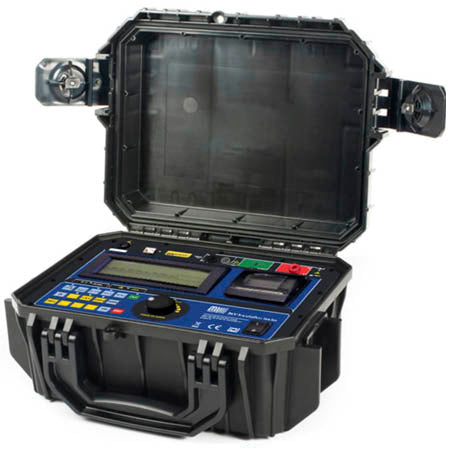

MD5KVR 5 kV Digital Insulation Tester – Reliable high-voltage testing solution

5 kV Digital Insulation Tester MD5KVR

SKU : MD5KVR
MAKE : MEGABRAS
MODEL : MD5KVR
WARRANTY : 1 Year
AVAILABILITY : IN STOCK
Megabras
AED 0.00 - AED 0.00
AED 0.00
AED 10,400.00
AED 10,400.00 - AED 10,400.00
AED 10,400.00
(Including VAT)

5 kV Digital Insulation Tester MD5KVR

The MD5KVR 5 kV Digital Insulation Tester is a sophisticated insulation analyzer designed for reliable, accurate testing of insulation resistance up to 5 TΩ. With four pre-set voltage levels—500V, 1kV, 2.5kV, and 5kV—along with programmable voltages between 50V and 5kV, the MD5KVR provides versatility in a wide range of high-voltage testing applications. It features automated tests such as dielectric discharge, ramp tests, and absorption index calculations, making it ideal for field and laboratory use. This tester is built to meet stringent safety standards, with its rugged design and advanced remote control functionality via Android devices.

Features

  • Insulation Resistance Testing: Up to 5 TΩ with selectable test voltages ranging from 50V to 5 kV.
  • Advanced Testing Functions: Dielectric discharge, ramp test, absorption index, polarization index, and step voltage tests.
  • Remote Control: Operate the tester through an Android app for enhanced safety and convenience.
  • Auto-Range and Data Logging: Automatically adjusts range and stores up to 16,000 readings for future analysis.
  • Built-in Printer: Prints real-time results and test details every 15 seconds.
  • USB and Bluetooth Interfaces: Allows data transfer and test control from PC or mobile devices.
  • Rechargeable Battery: Long-lasting LFP battery with up to 2000 charge cycles and enhanced safety features.
  • IP65 Protection: Dust-tight and protected against water, making it ideal for field operations.

Digital Insulation Tester

Test Voltages

 500V, 1kV, 2.5kV, 5kV; Programmable 50V to 5kV in 25V or 500V steps.



Insulation Resistance

 Up to 5 TΩ @ 5 kV.



Leakage Current Measurement

 1 nA to 3,000 μA with accuracy of ± (10% + 3 digits).



Capacitance Measurement

 50 nF to 10 μF @ 500V; 50 nF to 1 μF @ 5,000V.



Voltage Measurement

 DC voltmeter (15V to 1,000V); AC voltmeter (15V to 1,000V).



Safety Standards

 IEC 61010-1, Overvoltage Protection CAT III - 600V.



Operating Temperature

 -10°C to 50°C.



Storage Temperature

 -25°C to 70°C.



Humidity Range

 95% RH (non-condensing).



Battery

 Rechargeable 12V, 6000mAh LFP battery.



Weight

 Approx. 4.3 kg.



Dimensions

 345 x 272 x 159 mm.



Included:

  • 2 Measuring Test Leads.
  • GUARD Test Lead.
  • AC Adapter.
  • USB Cable.
  • User Manual.
  • Mega Logg 3 Software (downloadable).
  • Blue Logg App (downloadable).
  • Carrying Bag.
Datasheet : Download
