Entec Solar E-1500 I-V Curve Tracer

The Entec Solar E-1500 I-V Curve Tracer is the fastest and most precise instrument on the market for measuring photovoltaic module and string performance. Engineered to streamline operations and maintenance (O&M), commissioning, and quality control, this device measures up to 200 I-V curves per hour with unmatched accuracy. Designed for professional photovoltaic applications, the E-1500 supports wireless communication via the E-Sens sensor and synchronization with PVET® servers, enabling real-time monitoring and post-measurement analysis. Compact, lightweight, and equipped with innovative features like a barcode reader, automatic measurements, and a mobile app for remote control, the E-1500 sets a new standard in solar testing technology.

Features

• Fastest in Class: Measures up to 200 I-V curves per hour, significantly reducing testing time.
• High Accuracy: ±0.5% precision at maximum power point, adhering to IEC-61829 and IEC-60891 standards.
• Versatile Measurements: Supports both modules and strings up to 1500V and 35A.

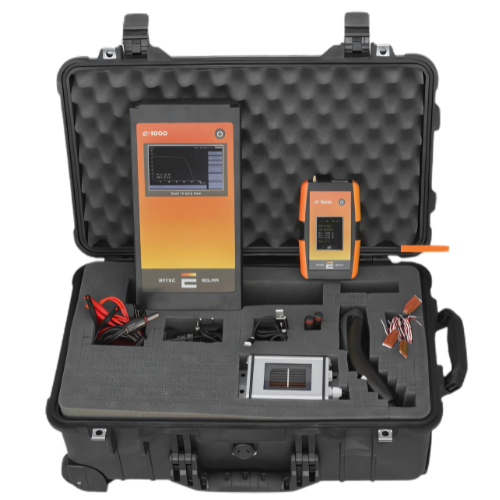

• Wireless Integration: Includes the E-Sens wireless sensor with a range of up to 2 km for irradiance and temperature measurements.
• Barcode Reader: Automatically logs module IDs and installation positions for seamless data management.
• Mobile App Control: Allows remote operation and data export through a smartphone app.
• Automatic Reporting: Generates detailed reports to save time on data processing.
• Portable Design: Lightweight (2.3 kg) and compact (310 x 180 x 55 mm) with a carrying backpack for fieldwork.
• Durable and Safe: Features over-voltage, over-current, and reverse polarity protections.
