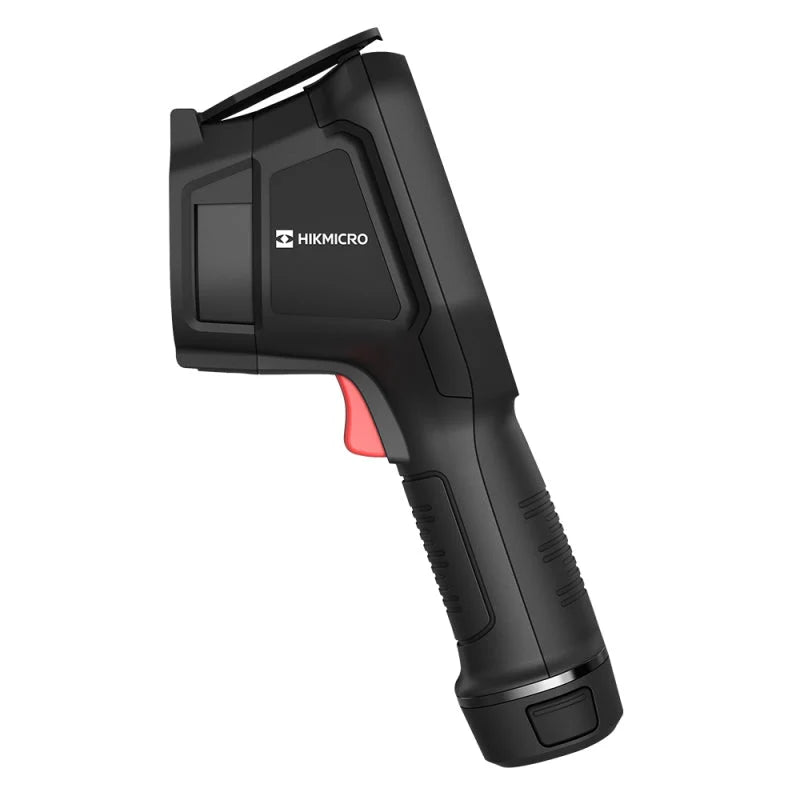

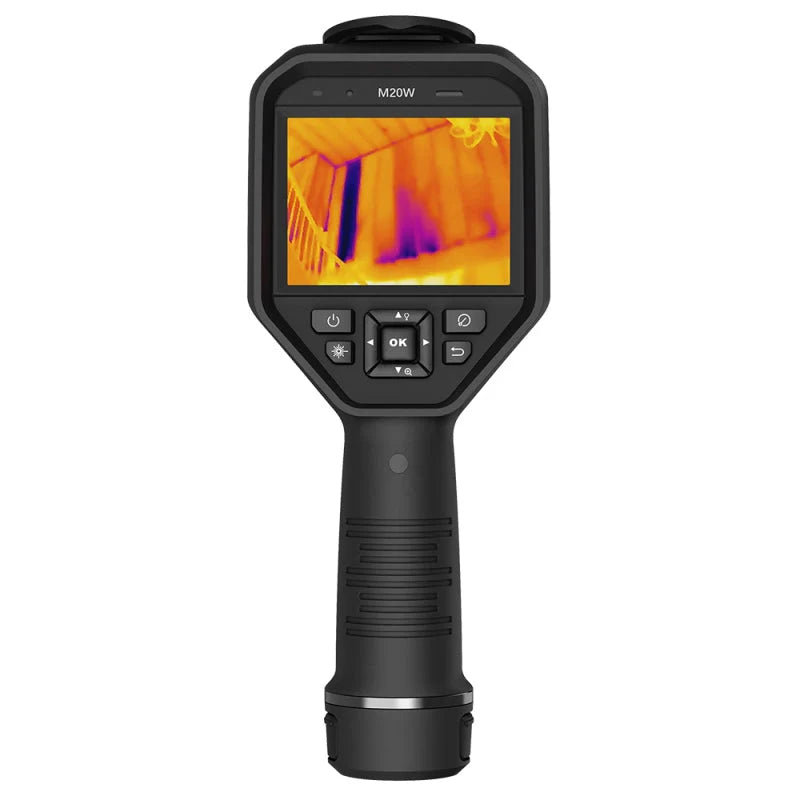

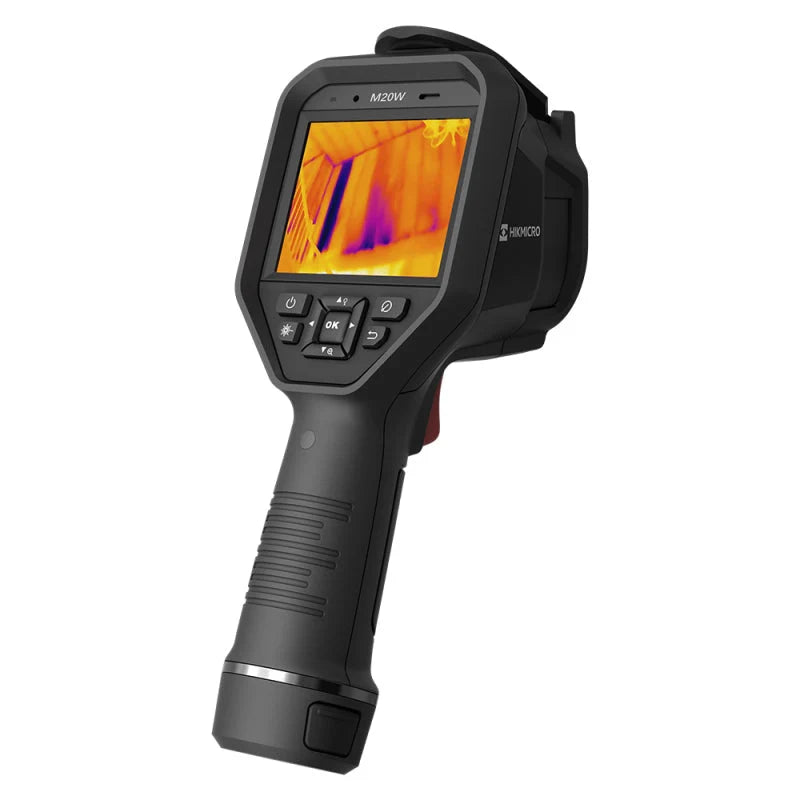

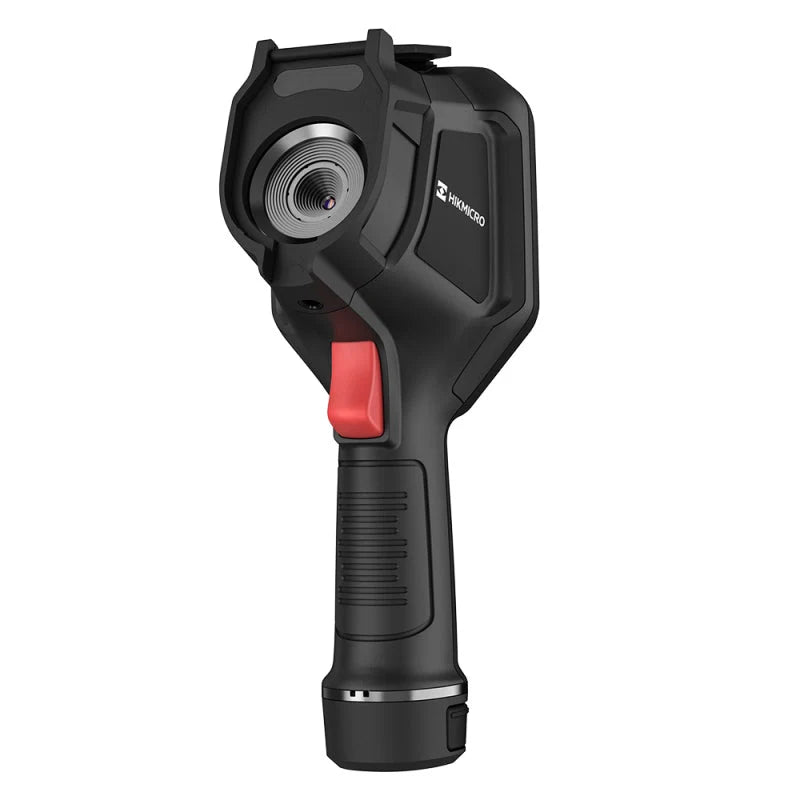

Hikmicro M20W Handheld Thermography Camera
In stock

Hikmicro M20W Handheld Thermography Camera

SKU : TIMHMm20W
MAKE : HIKMICRO
MODEL : M20W
WARRANTY : 2 Years
AVAILABILITY : IN STOCK
Hikmicro
AED 4,000.00 - AED 4,000.00
AED 4,000.00
AED 6,200.00
AED 6,200.00 - AED 6,200.00
AED 6,200.00
(Including VAT)

Hikmicro M20W Handheld Thermography Camera

The HIKMICRO M20W Handheld Thermography Camera is specifically designed for professional inspections of large objects, providing a wider field of view to capture more of the scene in a single image. Equipped with a high-resolution 256 × 192 thermal detector, a 50° x 37.2° fixed focus lens, and an 8MP visual camera, this device ensures clear and detailed imaging. The 3.5-inch touch screen offers intuitive operation, allowing users to quickly identify potential faults and quantify their impact with accurate temperature measurements. The M20W is an essential tool for efficient and thorough inspections.

Features:

  • High Sensitivity Thermal Module: 256 × 192 resolution for detailed thermal imaging.
  • Wide Field of View: 50° x 37.2° fixed focus lens captures more of the scene.
  • High-Quality Visual Camera: 8 MP resolution for clear visual images.
  • Bi-Spectrum Image Fusion: Combines thermal and visual images for enhanced clarity.
  • Multiple Imaging Modes: Thermal, visual, fusion, picture-in-picture, and blending.
  • Wide Temperature Range: Measures from -20°C to 550°C (-4°F to 1022°F).
  • High Accuracy: ±2°C/3.6°F or ±2% for precise measurements.
  • Large Touch Screen: 3.5-inch, 640 × 480 resolution LCD for easy viewing.
  • Digital Zoom: 1.0x to 8.0x continuous digital zoom.
  • Long-Distance Laser Pointer: Class II laser for precise targeting.
  • LED Light: Acts as a torch in low-light scenarios.

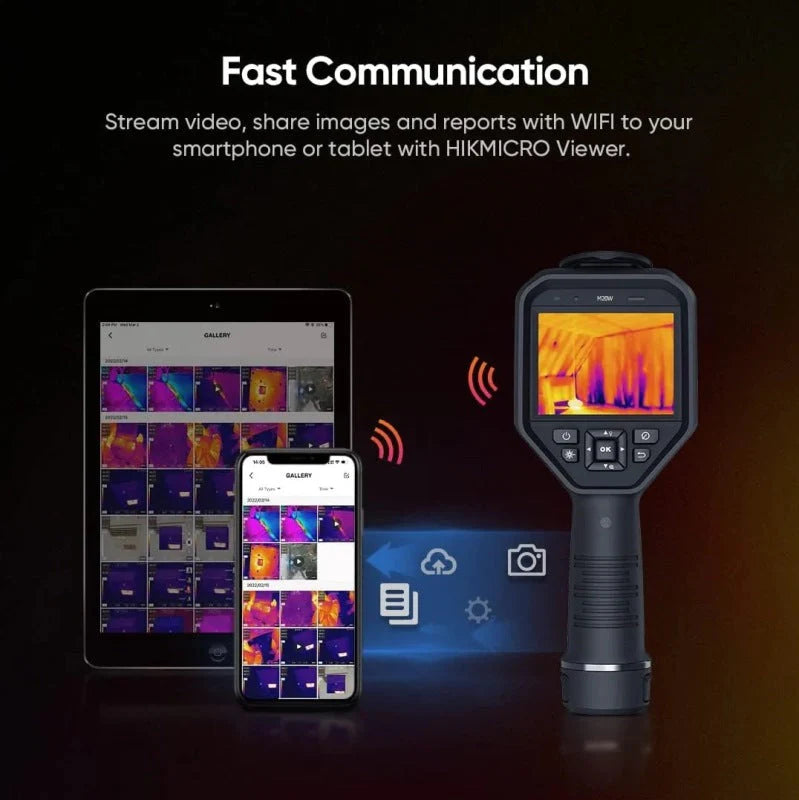

  • Remote Access and Reporting: Supports remote album access, downloads, and quick reports via an app.
  • Rugged Design: IP54 rated for dust and water resistance, and withstands drops up to 2 meters.
SpecificationDetails
Infrared Image
IR Resolution256 × 192 (49,152 pixels)
SuperIR512 × 384 (196,608 pixels)
NETD< 40 mK (@ 25 °C, F#=1.0)
Image Frequency25 Hz
Detector Pitch12 μm
Spectral Range7.5 to 14 μm
Focal Length3.6 mm
F-numberF1.0
Field of View (FOV)50° × 37.2°
Spatial Resolution (IFOV)3.33 mrad
Min. Focus Distance0.5 m (1.64 ft)
Focus ModeFocus Free
Image Display
Visual Camera3264 × 2448 (8 MP)
Display640 × 480 resolution, 3.5" LCD touch screen
Screen BrightnessManual
Digital Zoom1.0x to 8.0x continuous
Color PalettesWhite Hot, Black Hot, Rainbow, Ironbow, Red Hot, Fusion, Rain, Blue Red
Image ModesThermal, Visual, Fusion, PIP, Blending
Measurement and Analysis
Temperature Range-20 °C to 550 °C (-4 °F to 1022 °F)
Accuracy±2°C/3.6°F or ±2%
Measurement ToolsCenter Spot, Hot Spot, Cold Spot, user-definable (10 spots, 1 line, 5 rectangles, 5 circles)
Level and Span ModeAuto/Manual/1-Tap Touch-screen
Data Storage and Communication
Storage MediaRemovable 16 GB Micro SD Card
Image Storage CapacityApprox. 60,000 images
AnnotationsVoice note (max. 60 seconds), text note (max. 200 characters)
Video Storage CapacityApprox. 15 hours
Video File FormatMP4
Wi-Fi802.11 b/g/n (2.4 GHz and 5 GHz)
BluetoothBluetooth 4.2
USB InterfaceUSB Type-C
General
LED LightYes
LaserClass II, Wavelength: 635 nm, Power: < 1 mW
Battery TypeInterchangeable and rechargeable Li-ion battery
Battery Operating TimeApprox. 6 hours
Battery Charging TimeApprox. 4 hours
Protection LevelIP54
Drop Test Height2 meters
Working Temperature Range-10°C to 50°C (-4°F to 122°F)
Storage Temperature Range-20°C to 70°C (-4°F to 158°F)
Relative Humidity< 95% non-condensing
WeightApprox. 660 g (1.46 lb)
Dimensions244 × 100 × 104 mm (9.6 × 3.9 × 4.1 in)
Tripod MountingUNC ¼”-20
  • HIKMICRO M20W Handheld Thermography Camera
  • Removable 16 GB Micro SD Card
  • USB Type-C Cable
  • Rechargeable Li-ion Battery
  • Battery Charger
  • Protective Carrying Case
  • User Manual
  • Shoulder Strap
Datasheet : Download

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

Q1. What is the field of view for the HIKMICRO M20W?

  • The M20W has a wide field of view of 50° x 37.2°, ideal for capturing large scenes in a single image.

Q2. What is the temperature measurement range of the M20W?

  • The M20W measures temperatures from -20°C to 550°C (-4°F to 1022°F).

Q3. How accurate is the M20W Handheld Thermography Camera?

  • It has a temperature measurement accuracy of ±2°C/3.6°F or ±2%.

Q4. Does the M20W support wireless connectivity?

  • Yes, it supports Wi-Fi (802.11 b/g/n) and Bluetooth 4.2 for data transfer and remote control.

Q5. What type of display does the M20W have?

  • The M20W features a 3.5-inch, 640 × 480 resolution LCD touch screen for easy viewing and operation.

Q6. How long can the M20W operate on a single battery charge?

  • The M20W can operate for approximately 6 hours continuously on a fully charged battery.
