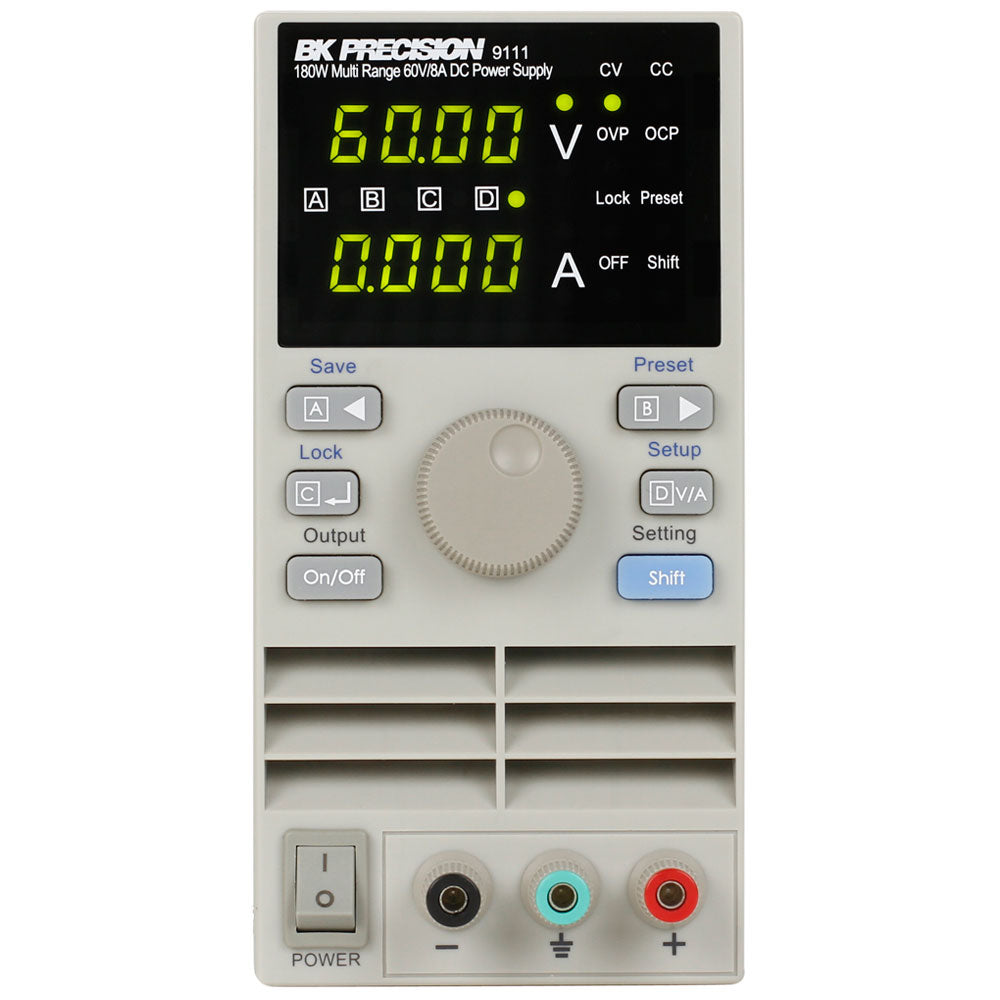

BK9111 Multi-Range DC Power Supply with 180W output
In stock

BK9111: 180W Multi-Range 60V/8A DC Power Supply

SKU : DOBK9111
MAKE : BK PRECISION-SEFRAM
MODEL : BK9111
AVAILABILITY : IN STOCK
bk_precision

BK9111: 180W Multi-Range 60V/8A DC Power Supply

The Model 9111 Multi-Range 60V/8A DC Power Supply delivers a flexible and efficient solution for various testing and prototyping applications. Unlike conventional fixed-output power supplies, the Model 9111 recalculates voltage and current limits dynamically, offering any combination of voltage and current up to its rated power of 180W. With features like low ripple, precise control, and advanced protection systems, this compact and lightweight power supply is ideal for electronics testing, development, and educational environments.

Features

  • High Output Flexibility: Provides up to 180W with a voltage range of 0-60V and current up to 8A.
  • Multi-Ranging Functionality: Automatically recalculates voltage and current combinations within the rated power.
  • High Precision: 10 mV/1 mA resolution ensures accurate adjustments and readings.
  • Advanced Protections: Includes Overcurrent (OCP), Overvoltage (OVP), and Overtemperature (OTP) protections.
  • Compact Design: Lightweight and space-saving, ideal for bench-top use.
  • User Memory Storage: Saves up to 100 groups of preset Volt/Amp settings for quick recall.
  • Easy-to-Read Display: Bright digital display for clear and accurate readings.
  • Temperature-Controlled Fan: Ensures efficient cooling with variable fan speeds.
  • On/Off Output Control: Provides safety and convenience during operation.

Digital Storage Oscilloscope

Output Ratings





Voltage

 0–60V



Current

 0–8A



Maximum Power

 180W



Regulation





Voltage Load Regulation

 ≤ 0.01% + 5 mV



Current Load Regulation

 ≤ 0.01% + 5 mA



Setting and Display Accuracy





Voltage Accuracy

 ≤ 0.05% + 10 mV



Current Accuracy

 ≤ 0.3% + 5 mA



Ripple and Noise





Voltage Ripple

 ≤ 5 mVrms



Current Ripple

 ≤ 8 mArms



General Details





AC Input

 99V–121V or 198V–242V, 47–63 Hz



Dimensions

 88 x 175 x 282 mm (3.47" x 6.9" x 11.11")



Weight

 3.5 kg (7.7 lbs)



  • Power cord
  • User manual
Datasheet : Download

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

What is the maximum power output of the Model 9111?

The Model 9111 offers a maximum power output of 180W.

Can this power supply handle multiple Volt/Amp combinations?

Yes, it recalculates and supports various voltage and current combinations within the 180W limit.

What protections are included in this power supply?

It includes Overcurrent (OCP), Overvoltage (OVP), and Overtemperature (OTP) protections.

Is this power supply suitable for educational use?

Yes, its compact design, precise controls, and user memory storage make it ideal for educational environments.

How does the multi-ranging feature benefit users?

It reduces the need for multiple power supplies by providing versatile Volt/Amp combinations.

Does the Model 9111 support memory recall?

Yes, it can store and recall up to 100 groups of preset settings.
