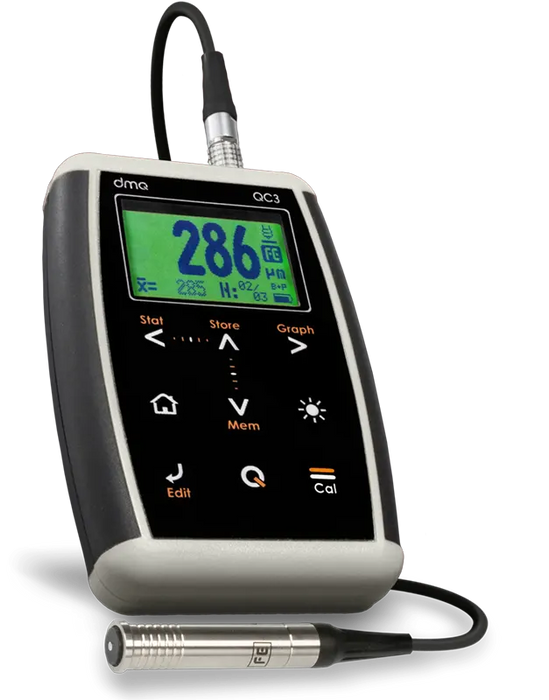

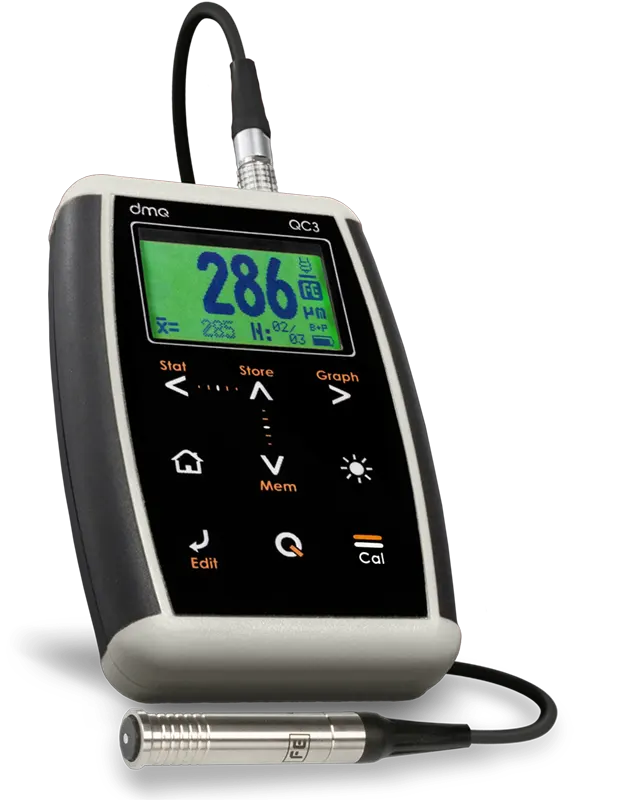

QC3 Series Coating Thickness Gauge with advanced probes

QC3 Series Coating Thickness Gauges

SKU : DMQQC3
MAKE : DMQ
MODEL : QC3
WARRANTY : 1 Year
AVAILABILITY : IN STOCK
DMQ

QC3 Series Coating Thickness Gauges

The QC3 Series Coating Thickness Gauges offer precise and reliable measurements for coatings on ferrous and non-ferrous substrates. Equipped with 3 calibration modes, advanced probes, and memory for 5,000 readings, these gauges are designed to meet diverse industrial needs. Whether measuring paints, varnishes, or metal coatings, the QC3 Series delivers high accuracy and ease of use. Compact and lightweight, it integrates seamlessly with dmq DataCenter software for comprehensive data management and reporting.

Features

  • Accurate Measurements: Ensures precise readings for ferrous and non-ferrous substrates.
  • Multiple Probe Options: Includes standard, mini, and extended range probes for diverse applications.
  • 3 Calibration Modes: Offers flexibility for achieving superior measurement accuracy.
  • Compact Design: Lightweight and portable for on-site and industrial use.
  • Data Logging: Stores up to 5,000 readings for efficient data management.
  • USB Connectivity: Allows seamless data transfer to PCs for analysis.
  • Durable Build: Designed for industrial environments with robust construction.
  • Advanced Software: Compatible with dmq DataCenter for data processing and reporting.
Probe Options
Standard Probe

 Range 0-1500 μm, ±1-3% accuracy.



Mini Probe

 Range 0-750 μm, ±1-3% accuracy.



Extended Range Probe

 Range 0-5000 μm, ±1-3% accuracy.



Resolution

0.1 μm (up to 200 μm).





1 μm (200 μm to 5000 μm).



Memory Capacity

 5,000 readings.



Connectivity

 USB interface for PC integration.



Battery Life

 60 hours with 2 AA batteries.



Weight

 182 g (0.40 lbs).



Dimensions

 79 x 117 x 24 mm (3.11 x 4.6 x 0.95 in).



Standards Compliance

 ISO 2178, ISO 2360, ASTM D7091, ASTM E376, ASTM B244.



  • QC3 electronic unit with integrated CalTag technology.
  • Standard probe for general applications.
  • Calibration kit (base and 3 shims).
  • USB cable for data transfer.
  • dmq DataCenter software on a USB drive.
  • High-impact carrying case.
  • User manual and certificate of conformity.
Datasheet : Download

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

What types of coatings can the QC3 Series measure?

It measures non-magnetic coatings on ferrous substrates and non-metallic coatings on non-ferrous substrates.

Does the QC3 Series support curved surface measurements?

Yes, it includes a "V" cut probe for accurate readings on curved surfaces.

How many readings can the QC3 store?

It can store up to 5,000 readings in its internal memory.

What is the accuracy of the QC3 Series?

The accuracy ranges from ±1-3% or ±2.5 μm, depending on the probe used.

Can data be transferred to a computer?

Yes, the QC3 Series features USB connectivity for data transfer and analysis.

Does it support different calibration modes?

Yes, it includes 3 calibration modes for precise and adaptable measurements.
