Ultrasonic Contact Impedance UCI Hardness Tester Novotest T-U2

SKU : HTNVTTU2
MAKE : NOVOTEST
MODEL : T-U2
WARRANTY : 1
AVAILABILITY : IN STOCK
Novotest
AED 0.00 - AED 0.00
AED 0.00
AED 5,600.00
AED 5,600.00 - AED 5,600.00
AED 5,600.00
(Including VAT)

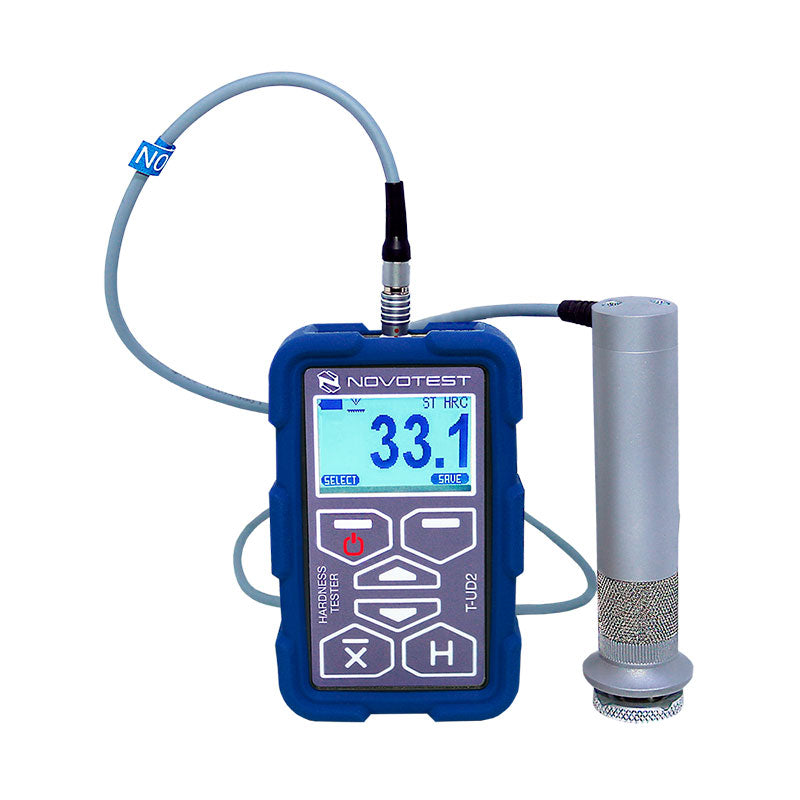

Ultrasonic Contact Impedance UCI Hardness Tester Novotest T-U2

NOVOTEST T-U2 is the best price hardness tester in the world that works on UCI (Ultrasonic Contact Impedance) technology. Unlike the Leeb hardness tester, such as the Leeb Hardness Tester NOVOTEST-D2  and the Leeb Hardness Tester NOVOTEST-D3 , UCI hardness tester can also be used with small or thin-walled products, as well as parts of complex shape or with areas that need to be tested in hard-to-reach places. The device with wide functionality and high reliability is UCI Hardness Tester NOVOTEST T-U2. This is a device that has been manufactured by our company for more than 10 years, and has established itself as the most optimal option in the world market for the combination of price  quality.

MEASURING HARDNESS OF COMPLEX SHAPED PRODUCTS

The UCI Hardness Tester NOVOTEST T-U2 main purposes are products of complex shape (gear teeth, bearings etc.) and hard-to-reach places that need to be tested (grooves, radius surfaces, welds and heat affected zones etc.)

Ultrasonic Contact Impedance UCI Hardness Tester

Range of hardness – Rockwell, HRC : 20 – 70
– Brinell, HB : 90 – 650
– Vickers, HV : 230 – 940
Hardness scale UCI probe: HRC, HB, HV, MPa
Measurement accuracy HRC: 2HRC
HB: 10HB
HV: 15HV
Standards ASTM A1038
ASTM A956
ASTM E140
ISO 18265
DIN50159
GB/T 34205
Materials UCI probe – pre-calibrated for steel.
Additional custom scales and materials for calibration.
Storage of measurement results 256
Dimensions, mm 122*65*23
Power DC 4,5V (3 pcs batteries AA)
Weight 0.3 Kg
  1. Hardness tester
  2. UCI probe (10N, 50N or 98N for choice)
  3. 2pcs AA batteries
  4. Charger
  5. USB cable
  6. Operating manual
  7. Software for PC
  8. Case
Download Datasheet : Download
