Ultrasonic Thickness Gauge ADL UT20
In stock

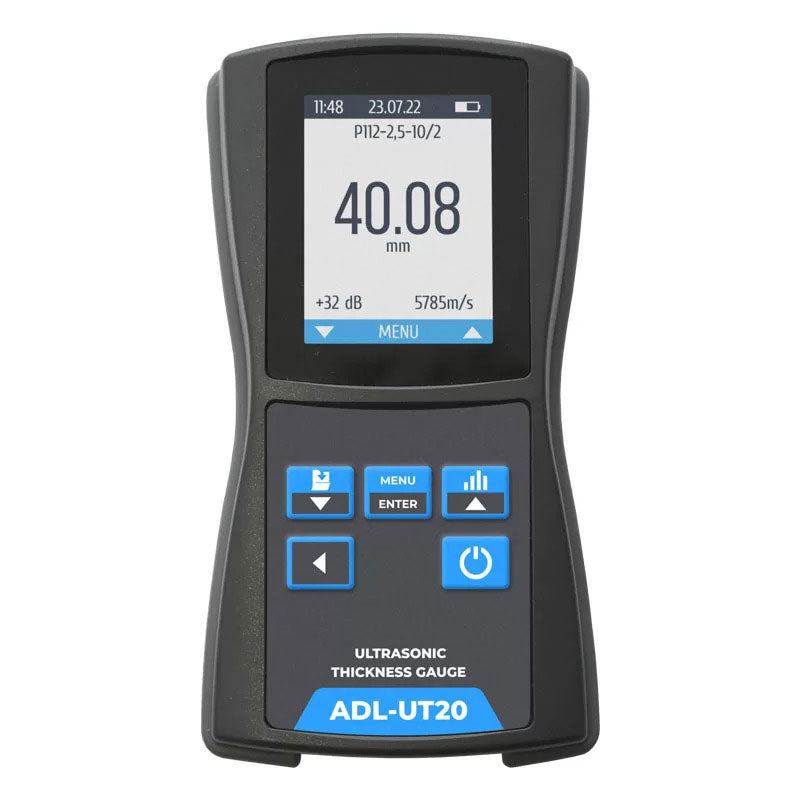

Ultrasonic Thickness Gauge ADL-UT20

SKU : ADLUT20
MAKE : ADELIX
MODEL : ADL-UT20
WARRANTY : 1 Year
AVAILABILITY : IN STOCK
Adelix
AED 0.00 - AED 0.00
AED 0.00
AED 2,560.00
AED 2,560.00 - AED 2,560.00
AED 2,560.00
(Including VAT)

Ultrasonic Thickness Gauge ADL-UT20

The Ultrasonic Thickness Gauge UT 20 is a high-precision device designed to measure the thickness of structural metal alloys and isotropic non-metallic materials. Utilizing advanced ultrasonic pulse-echo technology, the UT 20 ensures accurate measurements even with difficult-to-reach surfaces. Ideal for industrial applications, it offers fast, reliable thickness testing with one-side access.

Features:

  • High Accuracy: Measures thickness from 0.8 mm to 300 mm with precise calibration.
  • Versatile Transducers: Works with dual-element transducers operating between 2.5 MHz to 10 MHz.
  • Durable Design: Rugged and ergonomic design suitable for harsh industrial environments.
  • User-Friendly Interface: Easy-to-navigate menu for setting measurement parameters and calibration.
  • Data Storage & Transfer: Saves data for multiple measurements and transfers to PC via USB.
  • Rechargeable Battery: Operates with a long-lasting, rechargeable battery ensuring uninterrupted testing.

Ultrasonic Thickness Gauge

Measuring Range

 0.8 mm to 300 mm (depending on transducer type)



Accuracy

 ±(0.01T + 0.03) mm (for 0.8 to 10 mm) and ±(0.01T + 0.1) mm (for 10 to 300 mm)



Transducer Frequency Range

 2.5 MHz - 10 MHz



Resolution

 0.01 mm (for 0.8 mm to 99.99 mm), 0.1 mm (for 100 mm to 300 mm)



Operating Temperature

 -10°C to +50°C



Power Supply

 Built-in rechargeable 3.7 V battery



Weight

 240 g (processing unit)



Dimensions

 142 mm x 75 mm x 35 mm



•Thickness gauge ultrasonic;
• Converter – 2 pcs;
• Case;
• Manual;
• Passport;
• Cable micro-USB;
• Charger;
• Standard gauge for zero setting on dual-coupled probes 8.02mm

Download Datasheet : Download
Manual : Download

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

What materials can the UT 20 gauge measure?

The UT 20 can measure structural metals and isotropic non-metallic materials like plastics and composites.

How does the gauge work?

It uses ultrasonic pulse-echo technology, sending an ultrasonic wave through the material and measuring the reflection to calculate thickness.

What is the maximum thickness it can measure?

It can measure up to 300 mm depending on the transducer used.

Can I transfer data to my computer?

Yes, the UT 20 supports data transfer via USB to easily log and store measurement data.

What is the battery life of the UT 20?

The built-in rechargeable battery lasts for several hours of continuous operation.

Does the UT 20 work with different transducers?

Yes, it is compatible with various dual-element transducers operating between 2.5 MHz and 10 MHz.
