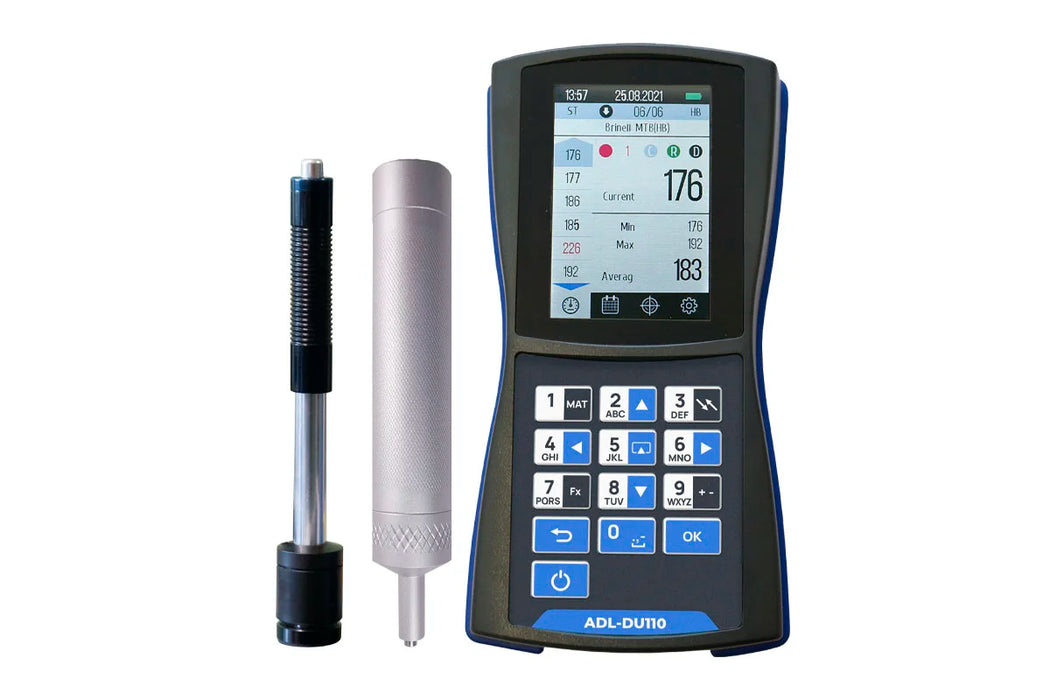

Universal Hardness Tester ADL-DU110

Dynamic hardness tester ADL-D100 is specially designed for express-control of hardness of metal products.The ADL-D100 is a versatile solution for accurate portable hardness testing and can be a reliable tool in your claims work. Especially when situations arise when other devices do not provide sufficient accuracy when measuring the hardness of parts.

ADL-D100 will be an affordable and reliable solution to problems when there are disagreements between workshops or contractors in the results obtained and when accepting parts, since the device measures with an accuracy as close as possible to stationary hardness testers. An intelligent averaging mode, a unique statistical processing system and flexible memory organization allow for the most accurate hardness measurements.

Features

✔ Dual Measurement System – Combines ultrasonic and dynamic hardness testing for increased flexibility.
✔ High Precision – Measures hardness of grooves, complex surfaces, thin-walled parts, and mirror surfaces with ease.
✔ Wide Compatibility – Ideal for carbon steel, stainless steel, galvanized coatings, and hardfacing materials.
✔ Durable Build – Shockproof, dustproof, and moisture-resistant housing for long-lasting use in industrial environments.
✔ User-Friendly Interface – PLUG AND PLAY system with LCD TFT 3.5'' display, providing clear and intuitive results.
✔ Data Storage & Connectivity – USB interface for PC connectivity, data storage, and graph generation.
✔ Programmable Scales – Supports over 500 additional hardness scales and conversion between scales.
✔ Reliable Readings – Advanced error filtering and statistical analysis ensure high accuracy and reliability.

Portable Leeb Hardness Tester Adelix

Measurement Methods

 Ultrasonic & Dynamic



Hardness Range

 30-650 HB



Accuracy

 ± regulated ISO standards



Sensor Compatibility
Ultrasonic sensor

 from 1 mm (flat surface), 5 mm (grooves/blind holes)



Dynamic sensor

 from 10 mm on the plane



Display

 LCD TFT 3.5'' 320x480 px, adjustable backlight



Memory

 Stores over 500 custom scales and measurement history



Operating Temperature

 -20°C to +45°C



Power Supply

 Built-in rechargeable battery



Weight

 0.3 kg



Body

 Shockproof plastic with rubberized inserts



Connectivity

 USB for data transfer and analysis



Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

How does the ADL-DU110 hardness tester work?

It uses ultrasonic and dynamic testing methods to measure metal hardness, making it ideal for various industrial applications.

What types of materials can this hardness tester measure?

It can measure carbon steel, stainless steel, heat-resistant alloys, galvanized coatings, and other hard coatings.

Can I use this tester for small or complex-shaped components?

Yes, the ultrasonic sensor is designed for measuring grooves, small radius surfaces, and complex shapes with high precision.

Is the ADL-DU110 hardness tester durable?

Yes, it features a shockproof, dustproof, and moisture-resistant housing, ensuring reliable performance in harsh environments.

Does it store previous measurement data?

Yes, it has a large memory capacity to store over 500 custom hardness scales and measurement history.

What is included with the device?

The package includes the ADL-DU110 hardness tester, ultrasonic and dynamic sensors, USB cable, protective case, and user manual.
