CombinedHardnessTesterNOVOTESTT-UD3
في الأوراق المالية

Combined Hardness Tester NOVOTEST T-UD3

رمز التخزين التعريفي : HTNVTUD3
يصنع : NOVOTEST
نموذج : T-UD3
ضمان : 1
التوفر : في الأوراق المالية
Novotest
AED 0.00 - AED 0.00
AED 0.00
AED 10,800.00
AED 10,800.00 - AED 10,800.00
AED 10,800.00
(بما في ذلك ضريبة القيمة المضافة)

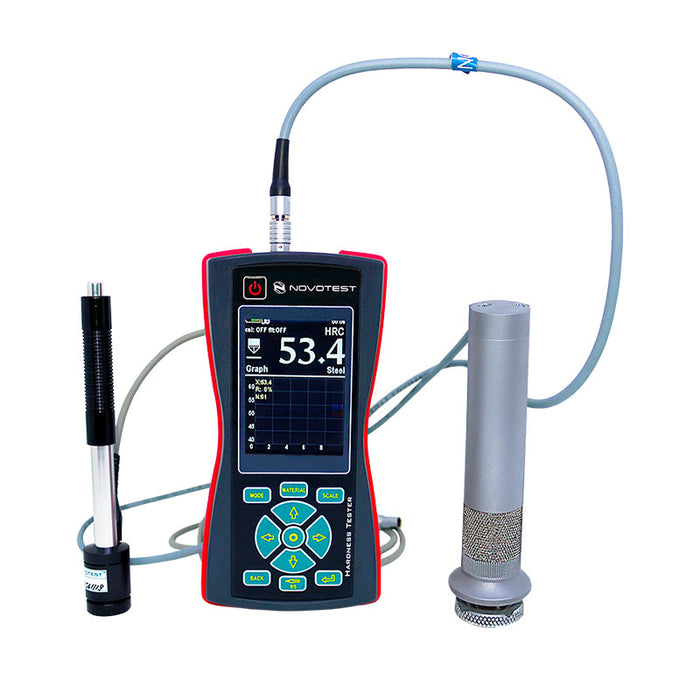

Combined Hardness Tester NOVOTEST T-UD3

Combined Hardness Tester NOVOTEST T-UD3 combines two methods of measuring hardness by an indirect method: Ultrasonic Contact Impedance (ASTM A1038) and Leeb (ASTM A956). This makes the device the most versatile portable device in the world.

The ability to connect both probes combines the advantages of both methods and providing users the opportunity to use the one that is most suitable for solving a specific task. The Combined Hardness Tester NOVOTEST T-UD3 allows user to measure the hardness of any metals, parts of any shape and thickness, measure the hardness of the surface hardened layers and evaluate the tensile strength.

UCI probe types 1kgf (10N) 2.2 lbf
5kgf (50N) 11lbf
10kgf (98N) 22lbf
Leeb probe types D
DC
DL
C
D+15
E
G
Measuring range Rockwell, HRC: 20 – 70
Brinell, HB: 90 – 650
Vickers, HV: 230- 940
Tensile strength, MPa: 370~1740
User calibrations for any range (for example: HV100-1600)
Measurement accuracy HRC: 2HRC
HB: 10HB
HV: 15HV
Hardness scale UCI probe – HRC, HB, HV, MPa
Leeb probe – HRC, HRB, HB, HV, HL, MPa
Additional custom scales for calibration
Materials Ultrasonic (UCI) probe – pre-calibrated for steel
Dynamic (Leeb) pre-calibrated for steel, alloy steel, cast iron, stainless steel, aluminum, bronze, brass, copper
Additional custom materials for calibration
Standards ASTM A1038
ASTM A956
ASTM A370
ISO 16859
ASTM E140
ISO 18265
DIN 50159
GB/T 34205
Storage of measurement results Limited only by the memory card up to 32Gb
Power DC 4,5V (3 pcs batteries AA)
Weight 0.3 Kg

Combined Hardness Tester NOVOTEST T-UD3

Download Data Sheet : Download
