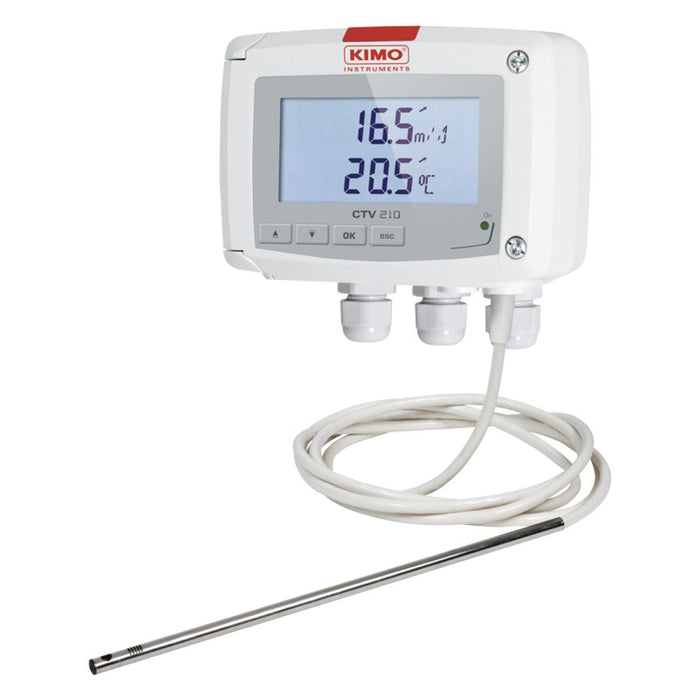

Air Velocity and Temperature Transmitter CTV210

Name: Air Velocity and Temperature Transmitter CTV210
Brand: Sauermann
SKU: CTV 210-R
Price: 1900.0 AED
Availability: InStock

رمز التخزين التعريفي : CTV 210-R

يصنع : SAUERMANN

نموذج : CTV 210-R

ضمان : 1 Year

التوفر : في الأوراق المالية

AED 0.00 - AED 0.00

AED 0.00

AED 1,900.00

AED 1,900.00 - AED 1,900.00

AED 1,900.00

(بما في ذلك ضريبة القيمة المضافة)

كمية

Air Velocity Measuring Range	0 to 30 m/s (configurable)
Air Velocity Accuracy	0 to 3 m/s, ±3% of reading ±0.03 m/s
	3 to 30 m/s, ±3% of reading ±0.1 m/s
Temperature Measuring Range	0 to 50 °C
Temperature Accuracy	±0.3% of reading ±0.25 °C
Response Time	T90 = 0.9 second for Vair = 1 m/s (temperature); T63 = 1.6 s (air velocity)
Output Options	2 x 0/4-20 mA or 2 x 0-5/10 V (4 wires)
Relay Outputs	2 changeover relays (3 A / 230 V)
Power Supply	24 Vdc/Vac ±10% or 100-240 Vac, 50-60 Hz
Protection Class	IP65
Housing Material	ABS V0 as per UL94
Operating Temperature	-10 to +50 °C
Storage Temperature	-10 to +70 °C
Display	75 x 40 mm LCD, 20 digits on 2 lines (optional)
Dimensions
Probe	Ø 8 mm, length 300 mm
Weight	340 g

Air Velocity Measuring Range	0 to 30 m/s (configurable)
Air Velocity Accuracy	0 to 3 m/s, ±3% of reading ±0.03 m/s
	3 to 30 m/s, ±3% of reading ±0.1 m/s
Temperature Measuring Range	0 to 50 °C
Temperature Accuracy	±0.3% of reading ±0.25 °C
Response Time	T90 = 0.9 second for Vair = 1 m/s (temperature); T63 = 1.6 s (air velocity)
Output Options	2 x 0/4-20 mA or 2 x 0-5/10 V (4 wires)
Relay Outputs	2 changeover relays (3 A / 230 V)
Power Supply	24 Vdc/Vac ±10% or 100-240 Vac, 50-60 Hz
Protection Class	IP65
Housing Material	ABS V0 as per UL94
Operating Temperature	-10 to +50 °C
Storage Temperature	-10 to +70 °C
Display	75 x 40 mm LCD, 20 digits on 2 lines (optional)
Dimensions
Probe	Ø 8 mm, length 300 mm
Weight	340 g
