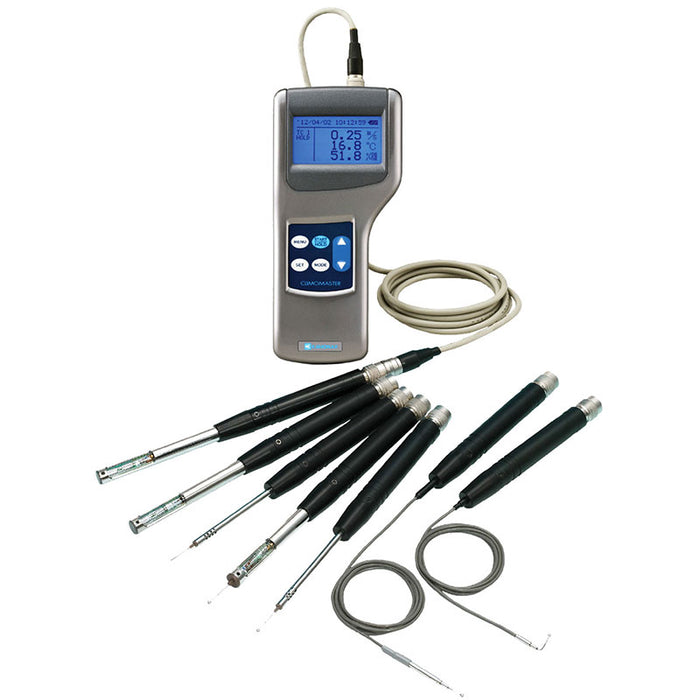

Multi Function Hot-Wire Anemometer
Multi function hor-wire anemometer is the most accurate hot-wire anemometer of its kind. It offers research-grade accuracy at an affordable, industry competitive price. Kanomax ensures the high accuracy of this anemometer with a special plati-num-coated sensor that improves stability and durability, and a production facility that uses multiple types of wind tunnels. This combination guarantees the accuracy and reliability of our products. A high degree of accuracy is essential for applications such as cleanroom certifications, laminar flow measurements, and R&D product development. he Hot Wire Anemometer, consisting of a display unit and a heat wire probe, enables a fast and precise measurement, especially of the low air speeds. The user of the device is able to read out the results optimally even in a dark environment. Due to the combination of a telescopic rod and a thin measuring head, a Hot Wire Anemometer from PCE can be used in the places, where there is little measuring space available or where the measuring point is difficult to reach for the examiner.
BENEFITS :
- Its sleek, ergonomic design with anti-slip grip comes standard with a highly visible backlit display making it the handheld choice of Journeymen technicians in the field.
- Stores up to 20,000 data points which is easily downloaded to your company computer for analysis via the USB interface.
- The optional software allows the users to view real-time data graphically formated on their company computer.
- For your convenience the anemometer keeps track of its own calibration cycle and reminds you when it is due for calibration
- The CLIMOMASTER 6501-CE measures pressure and features an analog output.
- Equipped with an automatic atmospheric pressure compensation function.
- When the direction of the airflow is unknown or turbulent, choose an OMNIdirectional probe.
Weight | 1.1 kg |
---|---|
Probe Type |
Telescopic and articulating tip |
Air Velocity |
Range : 20 to 6000 FPM (0.01 to 30.0m/s) |
Temperature |
Range : -4 to 158°F (-20 to 70°C) |
Pressure (Option for 6036-CE) |
Range : -5 to 5 kPa |
General Specifications |
Analog Output : DC 0 to 3V |
Data Storage Capacity |
Up to 1500 records |
Dimensions |
3.4 x 7.4 x 1.6 inches (88 x 188 x 41 mm)Probe Length: 39.4 inches (1000 mm) – telescopicProbe Diameter of Tip: 0.24 inches (6.1 mm) |
Weights |
0.9 lbs (400 g) |
Multi Function Hot-Wire Anemometer
Multi function hor-wire anemometer is the most accurate hot-wire anemometer of its kind. It offers research-grade accuracy at an affordable, industry competitive price. Kanomax ensures the high accuracy of this anemometer with a special plati-num-coated sensor that improves stability and durability, and a production facility that uses multiple types of wind tunnels. This combination guarantees the accuracy and reliability of our products. A high degree of accuracy is essential for applications such as cleanroom certifications, laminar flow measurements, and R&D product development. he Hot Wire Anemometer, consisting of a display unit and a heat wire probe, enables a fast and precise measurement, especially of the low air speeds. The user of the device is able to read out the results optimally even in a dark environment. Due to the combination of a telescopic rod and a thin measuring head, a Hot Wire Anemometer from PCE can be used in the places, where there is little measuring space available or where the measuring point is difficult to reach for the examiner.
BENEFITS :
- Its sleek, ergonomic design with anti-slip grip comes standard with a highly visible backlit display making it the handheld choice of Journeymen technicians in the field.
- Stores up to 20,000 data points which is easily downloaded to your company computer for analysis via the USB interface.
- The optional software allows the users to view real-time data graphically formated on their company computer.
- For your convenience the anemometer keeps track of its own calibration cycle and reminds you when it is due for calibration
- The CLIMOMASTER 6501-CE measures pressure and features an analog output.
- Equipped with an automatic atmospheric pressure compensation function.
- When the direction of the airflow is unknown or turbulent, choose an OMNIdirectional probe.
Weight | 1.1 kg |
---|---|
Probe Type |
Telescopic and articulating tip |
Air Velocity |
Range : 20 to 6000 FPM (0.01 to 30.0m/s) |
Temperature |
Range : -4 to 158°F (-20 to 70°C) |
Pressure (Option for 6036-CE) |
Range : -5 to 5 kPa |
General Specifications |
Analog Output : DC 0 to 3V |
Data Storage Capacity |
Up to 1500 records |
Dimensions |
3.4 x 7.4 x 1.6 inches (88 x 188 x 41 mm)Probe Length: 39.4 inches (1000 mm) – telescopicProbe Diameter of Tip: 0.24 inches (6.1 mm) |
Weights |
0.9 lbs (400 g) |
