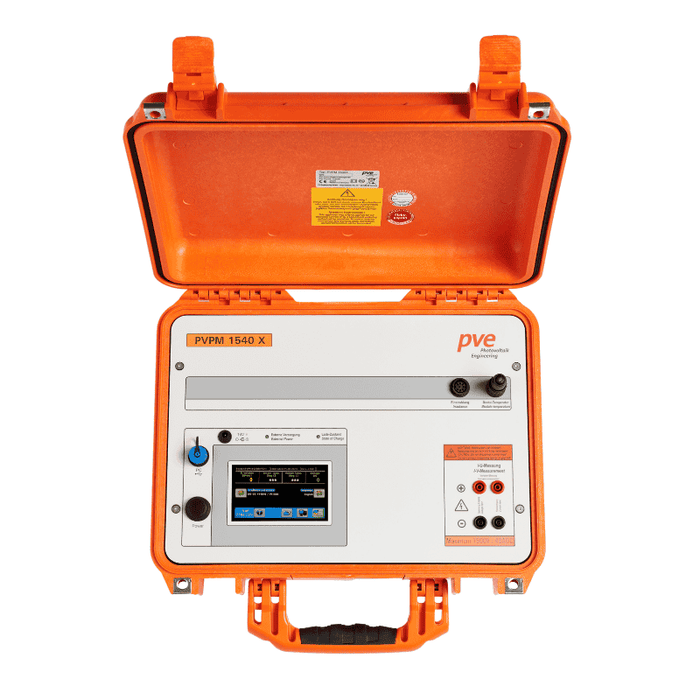

PVPM 1540X Portable IV Curve Tracer with TFT Display

High Efficiency PV modules IV Curve Tracer PVPM1540X

رمز التخزين التعريفي : PVPM1540X
يصنع : PVE PHOTOVOLTAIK ENGINEERING
نموذج : PVPM1540X
ضمان : 1 Year
PVE Photovoltaik Engineering
AED 0.00
$0.00 - $0.00
$0.00
AED 52,000.00
$14,159.29 - $14,159.29
$14,159.29

High Efficiency PV modules IV Curve Tracer PVPM1540X

IV-Curve Measurement Device for PV modules and strings up to 60kW (max. 1500V, 40A)

The PVPM 1540X Portable IV Curve Tracer is a high-precision device designed to measure and evaluate photovoltaic (PV) system performance. Perfect for utility-scale PV strings and advanced modules like bifacial and PERC, this innovative tool ensures accurate IV curves, peak power measurement, and system quality control. Equipped with a robust, waterproof PELI case, touchscreen operation, and patented technology, it is ideal for on-site testing and research applications. Optimize your solar power projects with this reliable, easy-to-use, and portable IV curve tracer.

Features

  • Measures IV curves for photovoltaic strings and high-capacity modules.
  • Integrated module and customer databases for streamlined operations.
  • Durable PELI case with IP67 rating for outdoor use.
  • Touchscreen TFT display for enhanced data visualization.
  • 4-wire Kelvin measurement for superior voltage accuracy.
  • Internal Li-ion battery supports up to 8 hours of continuous operation.
  • USB connectivity for PC integration and extended analysis.
  • Includes calibrated irradiation and temperature sensors.
  • Supports global operation with a wide-range power supply.

IV Curve

Voltage Range

 Up to 1500 V



Current Range

 Up to 40 A



Power Capability

 60 kW



Measurement Accuracy

 ±5% for peak performance, ±1% for IV curves



Sampling Rate

 Max 100 kHz



Display

 TFT touch screen, 480 x 272 pixels



Power Supply

 Li-ion battery, 8-hour operation; external 90-264 V AC charger



Dimensions

 40.6 x 17.5 x 33 cm



Weight

 8.5 kg



Operating Temperature

 0°C to 50°C



Storage Temperature

 -10°C to 85°C



Protection Rating

 IP67 (closed case)



  • Measuring instrument in a PELI case with a carrying handle.
  • External power supply and charger.
  • 4-wire lead with MC4 connectors (10 meters).
  • Calibrated irradiation sensor with Pt1000 temperature sensor.
  • USB cable for PC connection.
  • Control software compatible with Windows OS.
  • Santon Security Switch for 1500 V DC disconnection.
  • Aluminium case for leads and sensors.
Datasheet : Download

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

What is the maximum voltage and current this device can measure?

It can measure up to 1500 V and 40 A.

How accurate is the IV curve measurement?

The device offers an accuracy of ±1% for IV curves and ±5% for peak power.

Can it operate in outdoor conditions?

Yes, the device comes in a robust, waterproof PELI case with an IP67 rating.

Is it compatible with advanced PV modules like PERC?

Yes, it is specifically designed for high-efficiency modules, including PERC and bifacial.

How long does the battery last?

The built-in Li-ion battery supports up to 8 hours of continuous operation.

Does it support data analysis on a PC?

Yes, data can be transferred via USB and analyzed using the included Windows software.
