DL9101 Manual Ranging Multimeters
في الأوراق المالية

DL9101 Manual Ranging Multimeters

رمز التخزين التعريفي : DL9101
يصنع : DI-LOG
نموذج : DL9101
التوفر : في الأوراق المالية
Di-log
AED 0.00 - AED 0.00
AED 0.00
AED 340.00
AED 340.00 - AED 340.00
AED 340.00
(بما في ذلك ضريبة القيمة المضافة)

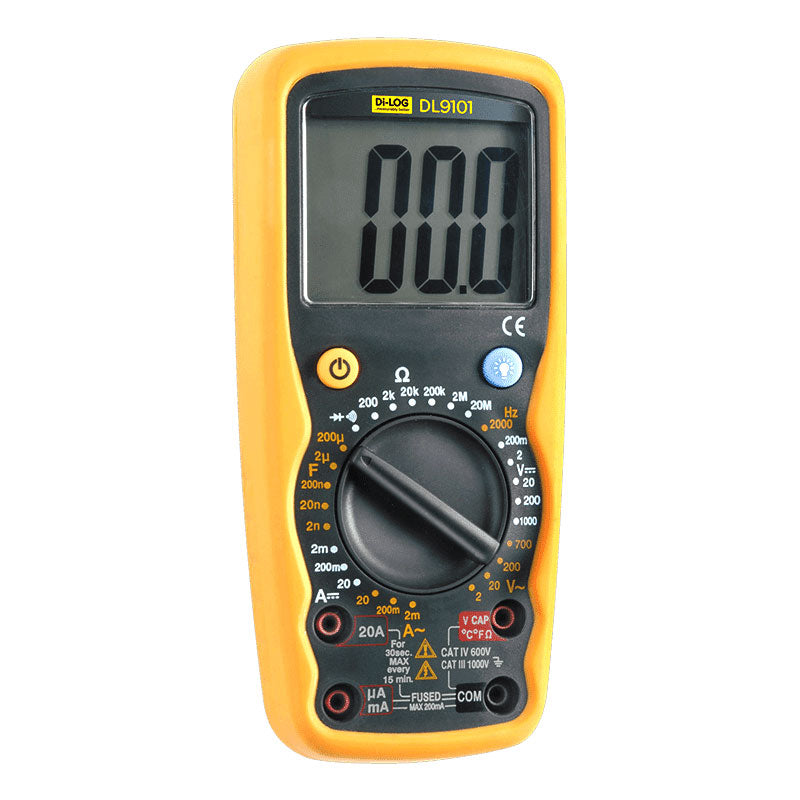

DL9101 Manual Ranging Multimeters

Manual Ranging Multimeters DL9101 General Purpose Manual Ranging 1000V MultimeterDouble moulded housing with an oversized high contrast 2000 count LCDdisplay. Manual ranging with current range up to 20A, capacitance and frequency test.

Features:

  • Large LCD display
  • Capacitance
  • Auto power off
  • Full range protection
  • 2000 count LCD display
  • Back lit LCD display
Manual Ranging Multimeters
AC voltage

Range : 0.1 mV – 700 V
Basic Accuracy : +/- 1.0 % + 5 digits
DC voltage

Range :0.1 mV – 1000 V
Basic Accuracy : +/- 0.5 % + 2 digits
AC current

Range :1 µA – 20 A
Basic Accuracy : +/- 2.0 % + 3 digits
DC current

Range : 1 µA – 20 A
Basic Accuracy : +/- 1.5 % + 3 digits
Continuity

Audible threshold > 50 Ω
Resistance

Range : 0.1 Ω – 20 MΩ
Basic Accuracy : +/- 1.2 % + 2 digits
Capacitance

Range : 1 pF – 200 µF
Basic Accuracy :+/- 4.0 % + 3 digits
Diode test

1 mA typical 2.8 V DC
Power supply

1 x 9 V battery
Dimensions

182 x 82 x 55 mm
Weight

360 g
