DL9309 True RMS Multimeter

Name: DL9309 True RMS Multimeter
Brand: Di-log
SKU: DL9309
Price: 750.0 AED
Availability: InStock

رمز التخزين التعريفي : DL9309

يصنع : DI-LOG

نموذج : DL9309

التوفر : في الأوراق المالية

AED 0.00 - AED 0.00

AED 0.00

AED 750.00

AED 750.00 - AED 750.00

AED 750.00

(بما في ذلك ضريبة القيمة المضافة)

كمية

وصف

تخصيص

Reviews

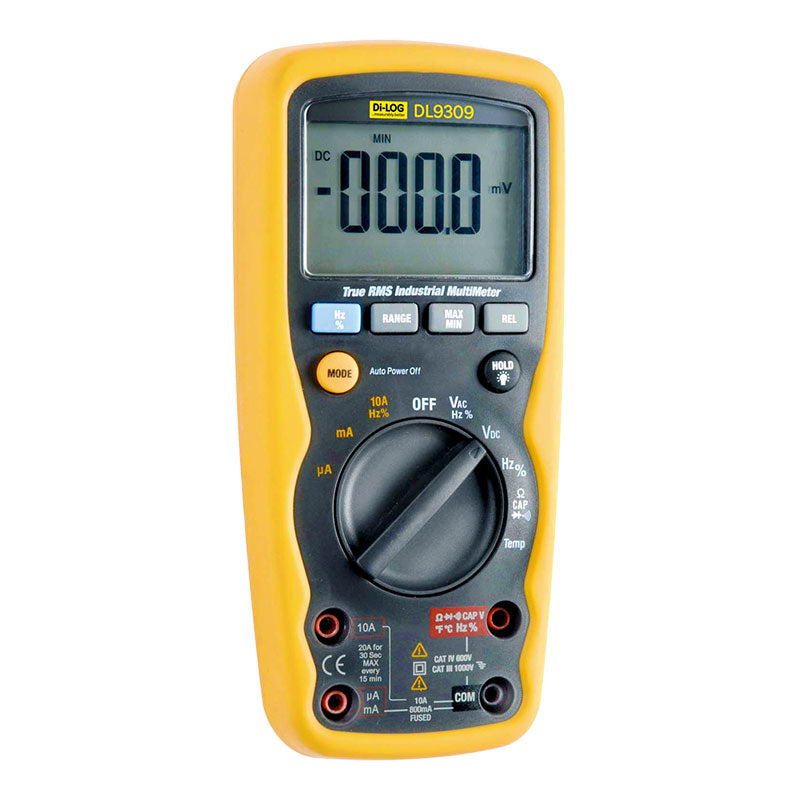

DL9309 True RMS Multimeter

This is the top of the range multimeter with a 6000 count high visibility back lit LCD display. A high precision multimeter offering accuracy, safety and reliability. The DL9309 has True RMS voltage and current readings with max/min and peak hold function making this the ideal multimeter for electrical engineers.

Features:

61 segment analogue bar graph
Full overload protection on all ranges
Max/Min, peak hold recording mode
Temperature reading in °C and °F
Wide Capacitance measurement range
Back lit LCD
Range selection for precise readings.

AC voltage	Range : 1.0 mV – 1000 V Basic Accuracy : 1.0 % +/- 3 digits
DC voltage	Range :0.1 mV – 1000 V Basic Accuracy : 0.09 % +/- 2 digits
AC current	Range :0.1 µA – 10 A Basic Accuracy : 1.5 % +/- 3 digits
DC current	Range : 0.1 µA – 10 A Basic Accuracy : 1.0 % +/- 3 digits
Resistance	Range: 0.1 Ω – 60 MΩ Basic Accuracy : 0.3 % +/- 4 digits
Capacitance	Range :0.01 nF – 1000 µF Basic Accuracy :3.5 % +/- 4 digits
Frequency	Range :0.001 Hz – 40 MHz Basic Accuracy :0.1 % +/- 1 digits
Temperature	Range: -45°C to 750°C Basic Accuracy :0.1 % +/- 1 digits
Diode test	0.9 mA typical 2.8 V DC
Power supply	1 x 9 V PP3 Alkaline battery (supplied)
Dimensions	182 x 82 x 55 mm
Weight	360 g

وصف

DL9309 True RMS Multimeter

Features:

61 segment analogue bar graph
Full overload protection on all ranges
Max/Min, peak hold recording mode
Temperature reading in °C and °F
Wide Capacitance measurement range
Back lit LCD
Range selection for precise readings.

تخصيص

AC voltage	Range : 1.0 mV – 1000 V Basic Accuracy : 1.0 % +/- 3 digits
DC voltage	Range :0.1 mV – 1000 V Basic Accuracy : 0.09 % +/- 2 digits
AC current	Range :0.1 µA – 10 A Basic Accuracy : 1.5 % +/- 3 digits
DC current	Range : 0.1 µA – 10 A Basic Accuracy : 1.0 % +/- 3 digits
Resistance	Range: 0.1 Ω – 60 MΩ Basic Accuracy : 0.3 % +/- 4 digits
Capacitance	Range :0.01 nF – 1000 µF Basic Accuracy :3.5 % +/- 4 digits
Frequency	Range :0.001 Hz – 40 MHz Basic Accuracy :0.1 % +/- 1 digits
Temperature	Range: -45°C to 750°C Basic Accuracy :0.1 % +/- 1 digits
Diode test	0.9 mA typical 2.8 V DC
Power supply	1 x 9 V PP3 Alkaline battery (supplied)
Dimensions	182 x 82 x 55 mm
Weight	360 g
