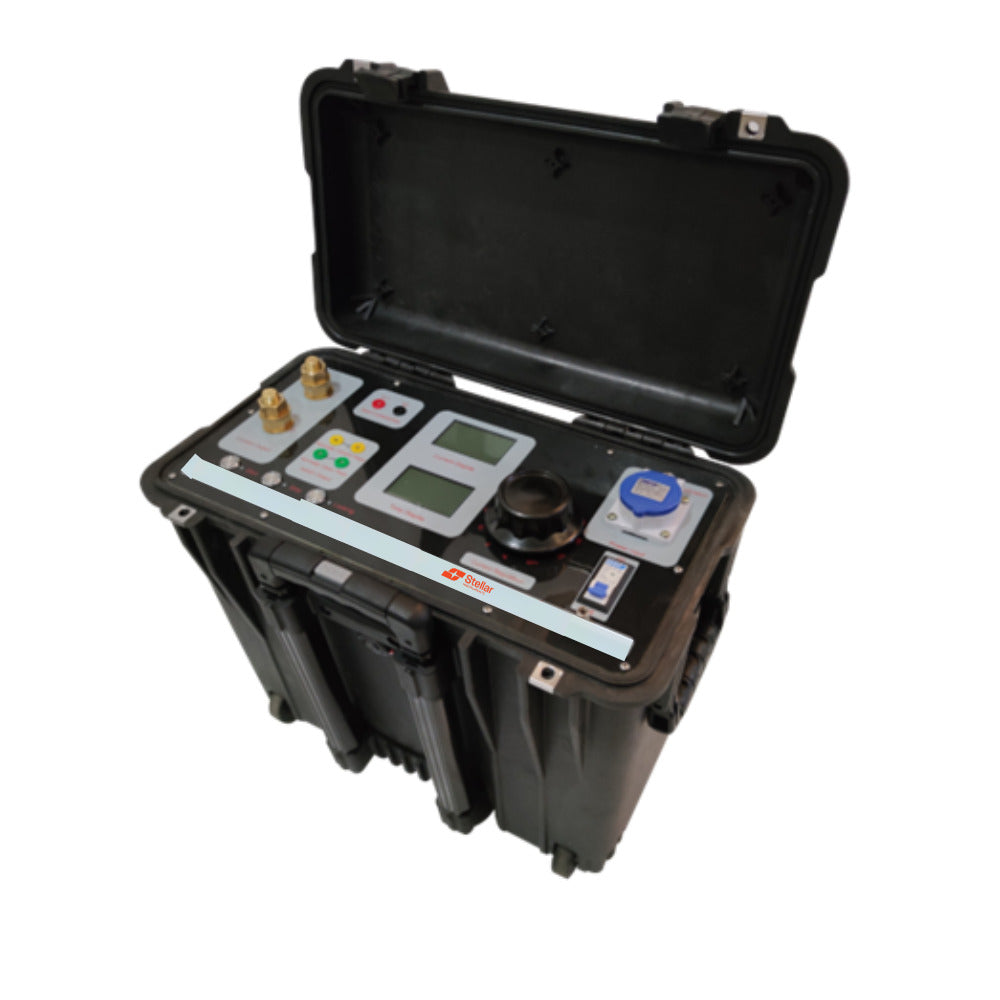

PCIT100 - High-Performance Primary Current Injection Tester
In stock

Primary Current Injection Kit - PCIT100

SKU : SIPCIT100
MAKE : STELLAR INSTRUMENTS
MODEL : PCIT100
WARRANTY : 1 Year
AVAILABILITY : IN STOCK
Stellar Instruments
$0.00
$0.00 - $0.00
$0.00
$7,624.23
$7,624.23 - $7,624.23
$7,624.23

Primary Current Injection Kit - PCIT100

The PCIT100 Primary Current Injection Tester is a state-of-the-art high-current generator designed for high-power applications. It provides exceptional anti-interference performance and high accuracy, making it ideal for electrical testing, circuit breaker calibration, and transformer ratio testing. The PCIT100 is widely used in industries like power generation, petrochemicals, railways, mining, and metallurgy. With a compact and lightweight design, it ensures ease of use while delivering high output power and low power consumption.

Features

  • Adjustable Output Current: Provides a continuously adjustable 0-1000A True RMS current.
  • High Accuracy & Stability: Ensures precise current regulation with 0.5% accuracy.
  • Advanced Protection Mechanisms: Includes over-current and over-voltage protection for safety.
  • Large LCD Screen: Easy-to-read display for clear parameter monitoring.
  • Synchronization Capability: Supports automatic contact detection and parallel testing.
  • Compact & Lightweight Design: Weighs 30 kg with dimensions 40 x 20 x 25 cm.
  • Versatile Applications: Suitable for switchgear testing, motor protection, and relay calibration.

Digital Insulation Tester

Output Current

 0 - 1000A (True RMS adjustable)



Power Output

 5000VA



Output Opening Voltage

 5V - 6V



Current Accuracy

 0.5%



Current Stability

 0.1%



Measuring Range

 0.0001S – 9999.9999S



Waveform

 Standard sine wave



THD (Total Harmonic Distortion)

 1%



Operating Temperature

 -10°C to +60°C



Humidity

 95% RH (Non-condensing)



Dimensions

 40 x 20 x 25 cm



Weight

 30 kg



  • Power Cables
  • User Manual
Datasheet : Download

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

What is a Primary Current Injection Tester used for?

It is used for testing circuit breakers, transformers, and protective relays by injecting a controlled high current.

What is the maximum output current of the PCIT100?

The PCIT100 can output up to 1000A of True RMS current.

Does the device have built-in protection?

Yes, it includes over-current and over-voltage protection to prevent equipment damage.

Is the PCIT100 suitable for industrial applications?

Yes, it is widely used in industries like power generation, petrochemicals, mining, and railways.

What type of waveform does the device produce?

It generates a standard sine wave with a THD of 1%.

How heavy is the PCIT100?

The device weighs 30 kg, making it compact and portable for industrial use.
