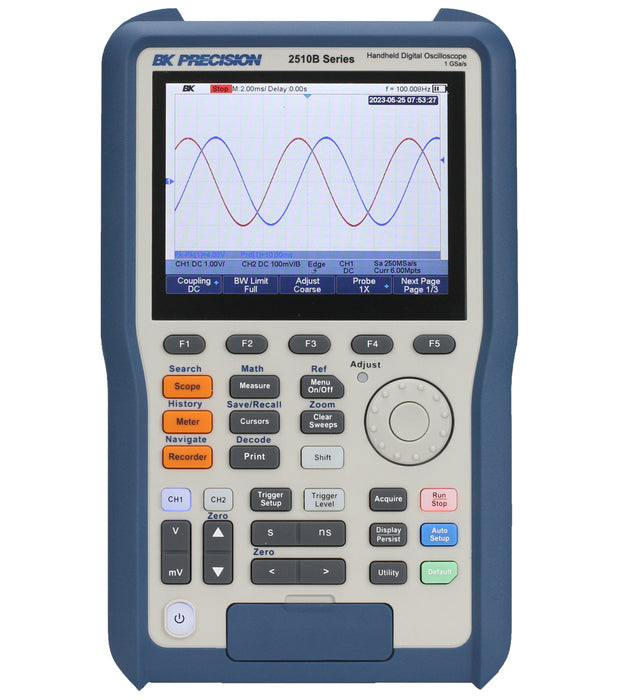

BK2511B Handheld Oscilloscope with 100 MHz bandwidth
In stock

BK2511B: 100 MHz, 1 GSa/s, Non-Isolated Handheld Digital Storage Oscilloscope

SKU : DOBK2511B
MAKE : BK PRECISION-SEFRAM
MODEL : BK2511B
AVAILABILITY : IN STOCK
bk_precision

BK2511B: 100 MHz, 1 GSa/s, Non-Isolated Handheld Digital Storage Oscilloscope

The BK2511B Handheld Digital Storage Oscilloscope offers a versatile and portable solution for capturing high-precision waveforms and signals. With a bandwidth of 100 MHz, a 1 GSa/s sampling rate, and 12 Mpts memory depth, this oscilloscope delivers exceptional performance for industrial, educational, and field applications. Its built-in 6000-count multimeter enables seamless transitions between oscilloscope and DMM functionalities. Compact, lightweight, and equipped with a 5.6” TFT display, the BK2511B is ideal for engineers, technicians, and electronics enthusiasts seeking accuracy and portability.

Features

  • High Bandwidth and Sampling Rate: 100 MHz bandwidth and 1 GSa/s sampling rate for precise signal capture.
  • Built-in Digital Multimeter: Includes functions for AC/DC voltage, current, resistance, capacitance, diode, and continuity measurements.
  • Large Memory Depth: 12 Mpts memory for detailed waveform analysis over extended durations.
  • Advanced Math Functions: Includes FFT, addition, subtraction, multiplication, and division for comprehensive signal analysis.
  • Serial Bus Decoding: Supports I2C, SPI, UART, CAN, and LIN protocols for debugging embedded systems.
  • Data Logging and Recording: Scope recorder and trend plot functions for real-time data monitoring.
  • Compact Design: Lightweight and durable, making it easy to transport and operate in various environments.
  • USB Connectivity: USB host and device ports for saving, recalling, and transferring data to a PC.
  • Long Battery Life: Operates up to 5.5 hours on a single charge for uninterrupted fieldwork.

Digital Storage Oscilloscope

Bandwidth

 100 MHz



Channels

 2 (non-isolated)



Sampling Rate

 1 GSa/s



Memory Depth

 12 Mpts



Display

 5.6” TFT-LCD (640 x 480 resolution)



Multimeter Features

 6000-count DMM with True RMS measurements



Waveform Update Rate

 100,000 wfms/s (Normal mode); 400,000 wfms/s (Sequence mode)



Serial Bus Decoding

 I2C, SPI, UART, CAN, LIN



Operating Time

 5.5 hours



Weight

 3.86 lbs (1.75 kg)



  • 2 x Passive probes (300 V CAT II, 250 MHz bandwidth)
  • USB cable
  • Power adapter
  • Soft carrying case
  • User manual
Datasheet : Download

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

What is the bandwidth of the BK2511B?

The BK2511B has a bandwidth of 100 MHz.

Does the oscilloscope support serial bus decoding?

Yes, it supports decoding for I2C, SPI, UART, CAN, and LIN protocols.

How long does the battery last on a single charge?

The BK2511B provides up to 5.5 hours of continuous operation.

Can the BK2511B record waveforms for long-term analysis?

Yes, it features a scope recorder function and trend plot for data logging.

Is the BK2511B lightweight and portable?

Yes, it is compact and weighs only 3.86 lbs, making it easy to transport.

What types of measurements can the built-in multimeter perform?

It supports AC/DC voltage, current, resistance, capacitance, diode, and continuity tests.
