LR-Cal LSP 1200-H

Hydraulic Pressure Comparison Test Pump LR-Cal LSP 1200-H

SKU : LR-Cal LSP 1200-H
MAKE : LR CAL
MODEL : LR-Cal LSP 1200-H
LR Cal
$0.00
$0.00 - $0.00
$0.00
$5,037.44
$5,037.44 - $5,037.44
$5,037.44

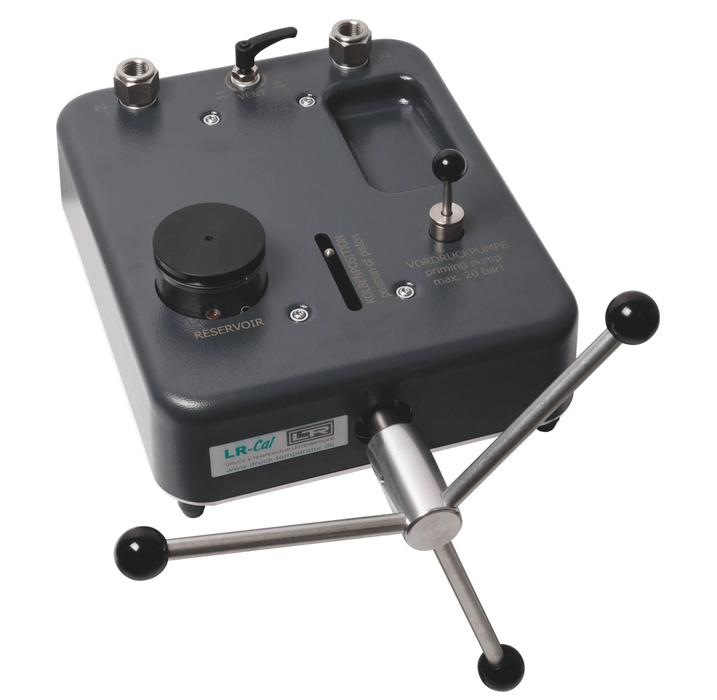

Hydraulic Pressure Comparison Test Pump LR-Cal LSP 1200-H

The LR-Cal LSP 1200-H is a high-performance hydraulic pressure comparison test pump, designed for generating pressures up to 1200 bar (17,400 psi). It is ideal for calibrating and testing mechanical and electronic pressure measuring instruments through precise comparison measurements. Whether used in laboratories, workshops, or directly at the measurement site, the LR-Cal LSP 1200-H ensures accurate and reliable calibration, making it an essential tool for professionals in the field.

Features

  • High-Pressure Capability: Generates pressures up to 1200 bar (17,400 psi) for accurate calibration of pressure instruments.
  • Dual Pump System: Equipped with a finely adjustable spindle pump for precise pressure control and a priming pump for quick pressure setup.
  • Robust Construction: Built with durable materials including stainless steel, aluminum, Viton, and NBR, ensuring longevity in demanding environments.
  • Compact and Portable: Designed for easy transportation and use in various settings, with a base plate and rigid housing for stability.
  • Minimized Contamination Risk: Features strainer dirt collectors in the pressure ports and fluid reservoir to reduce the risk of contamination.
  • Versatile Fluid Compatibility: Operates with mineral oil-based hydraulic fluids or distilled water, with versions available for aggressive media like SKYDROL® brake fluids.

Pneumatic Pressure Test Pump

Pressure Range

 Up to 1200 bar (17,400 psi)



Operating Fluid

 Mineral oil-based hydraulic fluid or distilled water



Pressure Connections

 2 x 1/2" BSP female rotating, includes strainer and gasket



Material

 Stainless steel, aluminum, Viton, NBR, and plastic components



Reservoir Capacity

 200 ml



Dimensions





Height

 322 mm without star-handle; 490 mm with star-handle



Width

 181 mm



Depth

 388 mm without star-handle; 490 mm with star-handle



Weight

 10.5 kg



  • Included:
    • LR-Cal LSP 1200-H Hydraulic Pressure Test Pump
    • Calibration Certificate
    • User Manual
    • Integrated strainers and gaskets for pressure ports
  • Optional:
    • Maintenance Kit (LSP-H-WARTUNG): Includes O-rings, sinter filters, and strainer dirt collectors for maintaining optimal performance.
    • Hand Suction Pump (HAP-02): For easy emptying and filling of the reservoir, with a 125 ml capacity per stroke and 500 mm hoses.
    • Blind Plugs (BLINDSTOPFEN-G12-VA): Stainless steel blind plugs for pressure ports (1/2" BSP), rated up to 3600 bar.
    • Custom Adapters: Available for various thread types and sizes upon request.
Dataseet : Download
