MIT1525 Insulation Resistance Testers Rental

MIT1525 Insulation Resistance Testers Rental

SKU : MIT1525
MODEL : MIT1525
AVAILABILITY : IN STOCK

SECURITY DEPOSIT: AED 6000.00

MIT1525 Insulation Resistance Testers Rental

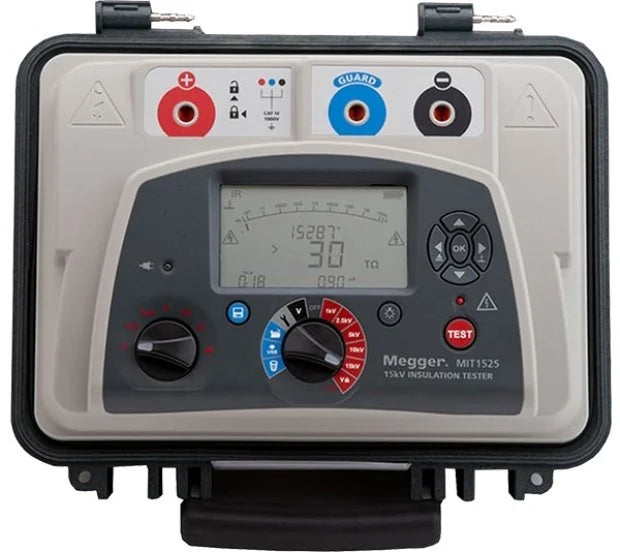

The MIT1525 is a top-of-the-range 15 kV insulation resistance tester from Megger, designed for original equipment manufacturers and industrial companies. It performs insulation resistance tests up to 15 kV with a maximum resistance of 30 TΩ. The device features advanced memory functions, including time/date stamping and USB interface for data transfer, making it ideal for comprehensive and accurate insulation testing. The robust dual-case design ensures durability and safety, while the rapid charge Li-ion battery provides extended operational time.



Output VoltageUp to 5 kV
Resistance Range 10 kΩ to 10 TΩ
Accuracy±5% from 1 MΩ to 3 TΩ, ±20% up to 30 TΩ
Short Circuit Current3 mA
Noise Rejection6 mA
Safety RatingCAT IV 1000 V up to 3000 m
Battery Life4.5 hours continuous testing at 15 kV with 100 MΩ load
Charging Time2.5 hours from deep discharge
DisplayLarge LCD with backlight
Dimensions360 mm x 305 mm x 194 mm
Weight6.5 kg

Power lead
USB cable
Calibration certificate
10 ft (3 m) lead set with large 15 kV insulated clips

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

Q1. What is the maximum resistance range the MIT1525 can measure?

The MIT1525 can measure resistance up to 30 TΩ.

Q2. How accurate is the MIT1525 in measuring insulation resistance?

The MIT1525 has an accuracy of ±5% for resistances between 1 MΩ and 3 TΩ, and ±20% for resistances up to 30 TΩ.

Q3. What safety rating does the MIT1525 have?

The MIT1525 is rated CAT IV 1000 V up to 3000 m altitude.

Q4. How long does the battery last on a full charge?

The Li-ion battery provides up to 4.5 hours of continuous testing at 15 kV with a 100 MΩ load.

Q5. What types of tests can the MIT1525 perform?

The MIT1525 can perform insulation resistance (IR), Dielectric Absorption Ratio (DAR), Polarization Index (PI), Dielectric Discharge (DD), Step Voltage (SV), and Ramp tests.

Q6. Is the MIT1525 suitable for use in harsh environments?

Yes, the MIT1525 has an IP65 rating when the case is closed, providing protection against dust and moisture.

MIT1525 Insulation Resistance Testers Rental

The MIT1525 is a top-of-the-range 15 kV insulation resistance tester from Megger, designed for original equipment manufacturers and industrial companies. It performs insulation resistance tests up to 15 kV with a maximum resistance of 30 TΩ. The device features advanced memory functions, including time/date stamping and USB interface for data transfer, making it ideal for comprehensive and accurate insulation testing. The robust dual-case design ensures durability and safety, while the rapid charge Li-ion battery provides extended operational time.



Output VoltageUp to 5 kV
Resistance Range 10 kΩ to 10 TΩ
Accuracy±5% from 1 MΩ to 3 TΩ, ±20% up to 30 TΩ
Short Circuit Current3 mA
Noise Rejection6 mA
Safety RatingCAT IV 1000 V up to 3000 m
Battery Life4.5 hours continuous testing at 15 kV with 100 MΩ load
Charging Time2.5 hours from deep discharge
DisplayLarge LCD with backlight
Dimensions360 mm x 305 mm x 194 mm
Weight6.5 kg

Power lead
USB cable
Calibration certificate
10 ft (3 m) lead set with large 15 kV insulated clips

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

Q1. What is the maximum resistance range the MIT1525 can measure?

The MIT1525 can measure resistance up to 30 TΩ.

Q2. How accurate is the MIT1525 in measuring insulation resistance?

The MIT1525 has an accuracy of ±5% for resistances between 1 MΩ and 3 TΩ, and ±20% for resistances up to 30 TΩ.

Q3. What safety rating does the MIT1525 have?

The MIT1525 is rated CAT IV 1000 V up to 3000 m altitude.

Q4. How long does the battery last on a full charge?

The Li-ion battery provides up to 4.5 hours of continuous testing at 15 kV with a 100 MΩ load.

Q5. What types of tests can the MIT1525 perform?

The MIT1525 can perform insulation resistance (IR), Dielectric Absorption Ratio (DAR), Polarization Index (PI), Dielectric Discharge (DD), Step Voltage (SV), and Ramp tests.

Q6. Is the MIT1525 suitable for use in harsh environments?

Yes, the MIT1525 has an IP65 rating when the case is closed, providing protection against dust and moisture.
