Leeb UCI Hardness Tester QH7L

Heavy-Duty Leeb Hardness Tester QH7L

SKU : DMQQH7L
MAKE : DMQ
MODEL : QH7L
WARRANTY : 1 Year
AVAILABILITY : IN STOCK
DMQ
AED 14,200.00 - AED 14,200.00
AED 14,200.00
AED 14,200.00 - AED 14,200.00
AED 14,200.00
(Including VAT)

Heavy-Duty Leeb Hardness Tester QH7L

The QH7L Series Portable "Heavy-Duty" Hardness Tester combines Leeb rebound and Ultrasonic Contact Impedance (UCI) methods, making it the ultimate tool for versatile hardness testing across a wide range of applications. Equipped with GyroTag and CalTag technologies, it offers automatic angle and probe detection for accurate results. Ideal for measuring hardness in large, heavy components, heat-affected zones, or small, polished parts, the QH7 Series is built for industrial reliability. Its rugged aluminum enclosure, rechargeable battery, and large memory capacity ensure efficiency and durability in demanding environments.

Features

  • Dual Hardness Testing Methods: Leeb rebound for versatile applications.
  • GyroTag Technology: Automatically detects the impact device angle for precise Leeb measurements.
  • CalTag Technology: Automatically identifies UCI probes for seamless operation.
  • Wide Range of Applications: Suitable for steel, aluminum, stainless steel, and cast iron materials.
  • Multiple Hardness Units: Measures in Vickers, Rockwell (B/C), Brinell, Leeb, Shore, and MPa.
  • High Memory Capacity: Stores up to 32,000 readings.
  • Durable Build: IP-rated aluminum enclosure for long-lasting industrial use.
  • Data Connectivity: USB and RS232 interfaces for data transfer to PCs.
  • Rechargeable Battery: Provides up to 20 hours of continuous operation.
  • Advanced Software: Includes dmq DataCenter for analysis, graphing, and reporting.
Measurement Range
Leeb

 HL 150 – 960 (±4HL or 0.5% at 800HL)

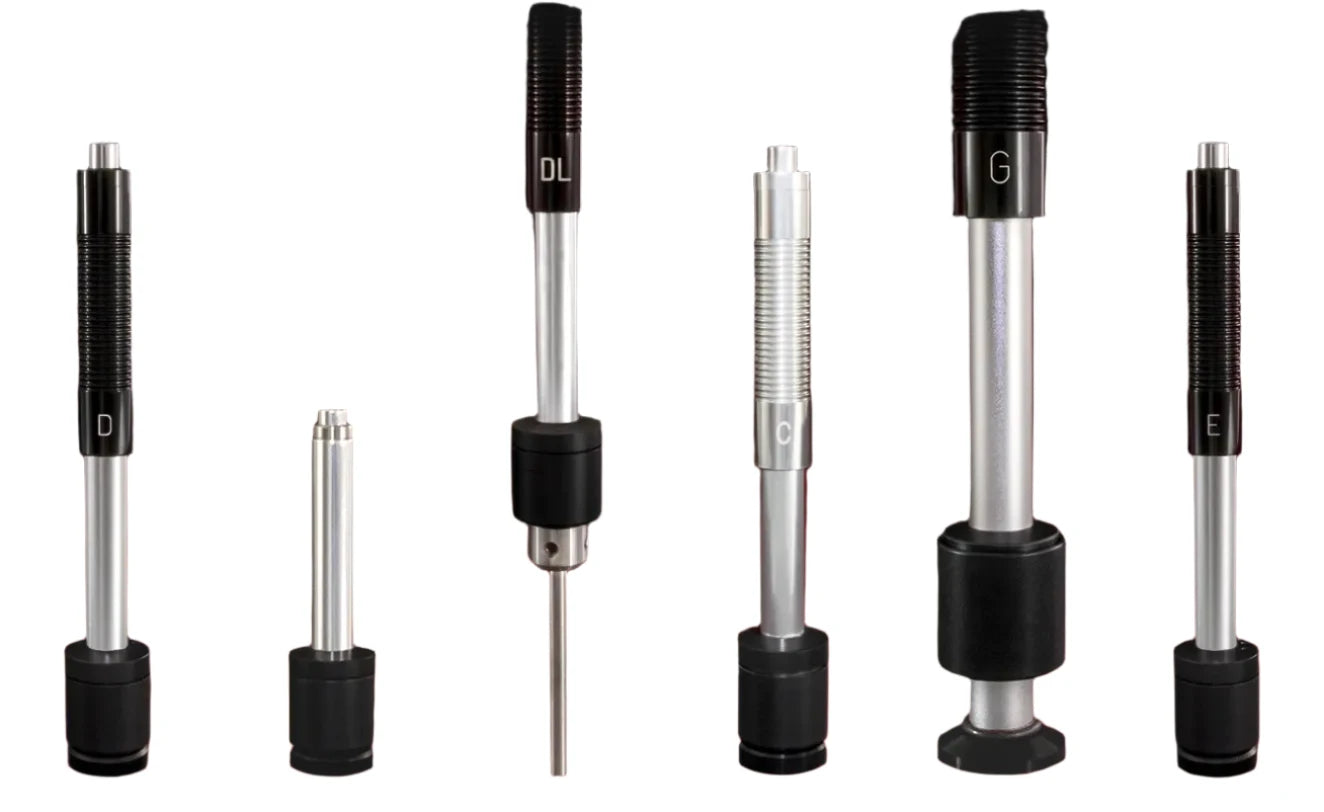

Supported Impact Devices

 D, DC, C, G, DL, E.



Memory Capacity

 32,000 readings.



Battery Life

 20 hours (rechargeable).



Enclosure Material

 High-resistance aluminum.



Display

 Large LCD with clear data visualization.



Communication Ports

 USB, RS232.



Weight

 998 g (2.20 lbs).



Dimensions

 197 x 111 x 65 mm



  • Type D impact device.
  • Reference test block.
  • USB cable for PC connectivity.
  • Battery charger.
  • Carrying case for transport and protection.
  • DMQ Data Center software on a USB drive.
Datasheet : Download

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

What materials can the QH7 Series measure?

It measures hardness on steel, aluminum, stainless steel, cast iron, and other metals.

Can this tester store measurement data?

Yes, it can store up to 32,000 readings in its internal memory.

What is the advantage of GyroTag technology?

GyroTag automatically detects the impact device angle, ensuring precise Leeb measurements.

Does it include a software for data analysis?

Yes, it comes with dmq DataCenter software for advanced analysis and reporting.

What is the maximum battery life of the QH7 Series?

The rechargeable battery provides up to 20 hours of continuous operation.

Is it suitable for both large and small parts?

Yes, it handles heavy-duty components using Leeb and polished or small parts using UCI.
