LeebHardnessTesterNOVOTESTT-D3
In stock

Leeb Hardness Tester NOVOTEST T-D3

SKU : HTTD3
MAKE : NOVOTEST
MODEL : T-D3
AVAILABILITY : IN STOCK
Novotest
AED 0.00 - AED 0.00
AED 0.00
AED 6,600.00
AED 6,600.00 - AED 6,600.00
AED 6,600.00
(Including VAT)

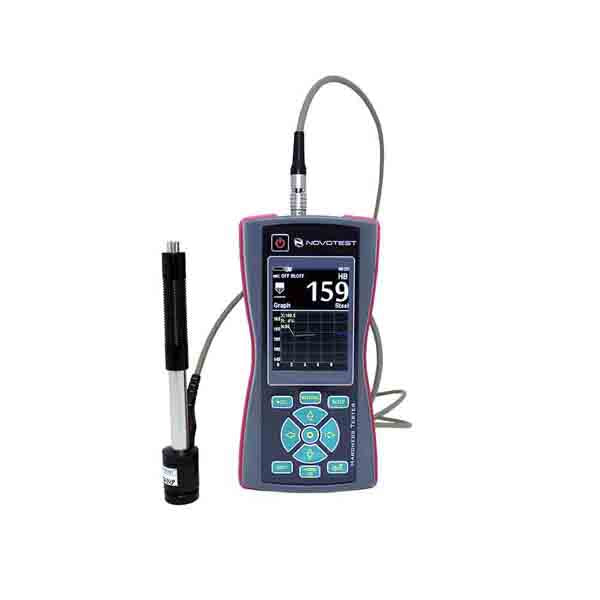

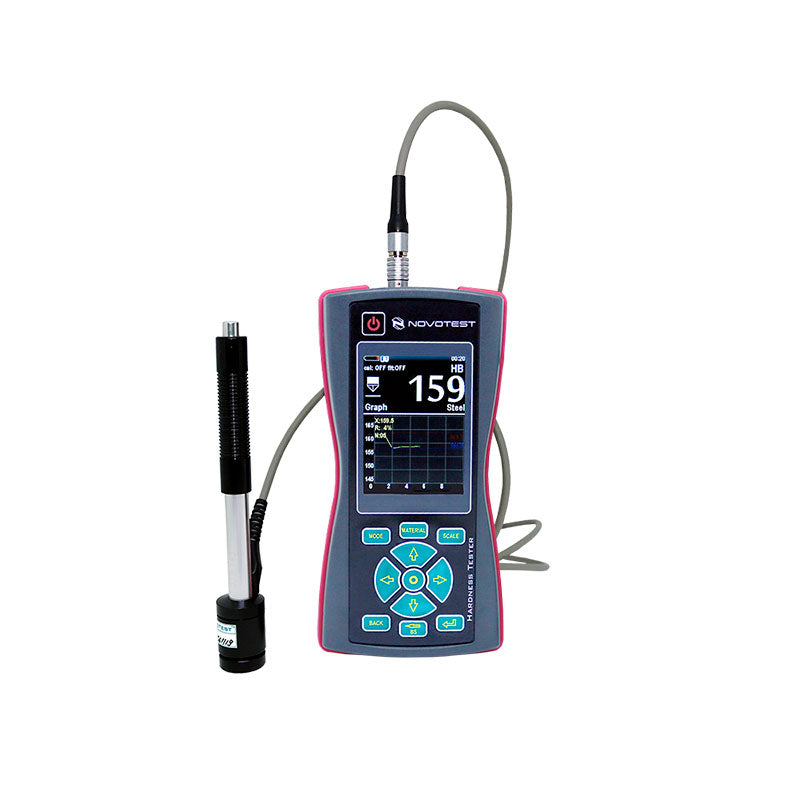

Leeb Hardness Tester NOVOTEST T-D3

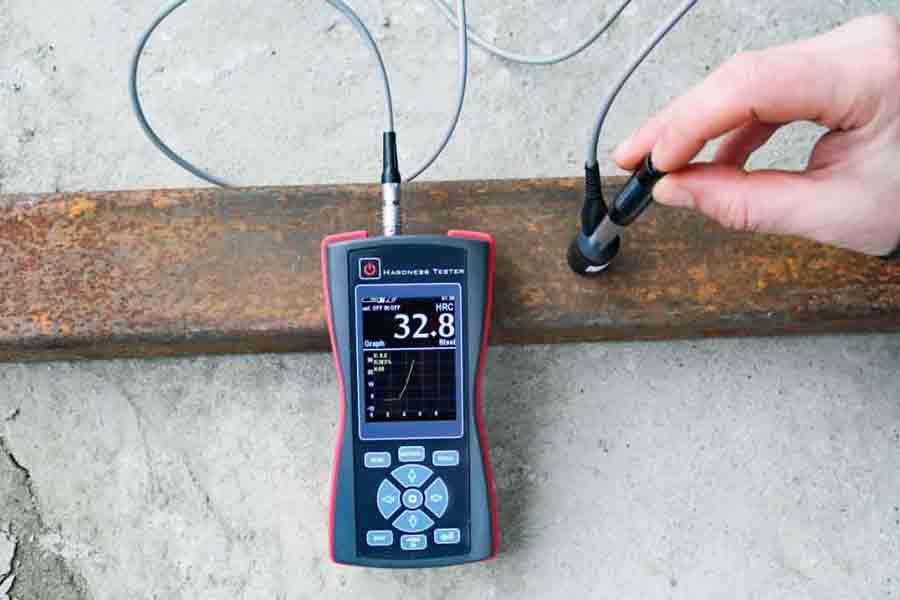

The most popular method in the world for testing the hardness of metals using a portable hardness tester is the Leeb method (ASTM A956). The so-called dynamic method for determining hardness is widespread due to its ease of use. The user does not need to have special skills and or knowledge in the field of hardness measurement, to carry out the measurement, it is necessary to charge up the impact body of the device’s probe, install the probe on the tested surface, press the release button of the probe and the hardness value will be displayed on the device screen.This method is recommended for large products, weighing from 5 kg and a thickness of 10 mm and more, however, observing certain requirements for fixing the product, it is possible to measure also small parts.

Range of hardness value

Rockwell, HRC: 20 – 70
Brinell, HB: 90 – 650
Vickers, HV: 230- 940
Can be calibrated for any scale and any range.
Measurement accuracy

HRC: 2HRC
HB: 10HB
HV: 15HV
Hardness scale

Leeb probe – HRC, HB, HV, HL, MPa
Additional custom scales for calibration
Materials

Leeb probe – pre-calibrated for steel, alloy steel, stainless steel, aluminum or cast iron.
Additional custom scales and materials for calibration.
Standards

ASTM A 956
ASTM E 140
ASTM A 370
ISO 16859
DIN 50156
GB/T 17394
JB/T 9378
ISO 18265
Storage of measurement results

256
Power

2pcs AA batteries
Weight

0.2 Kg

Leeb Hardness Tester NOVOTEST T-D3

Download Data Sheet : Download
