Multifunction-Temperature-Calibrator-LR-Cal-LTC-100

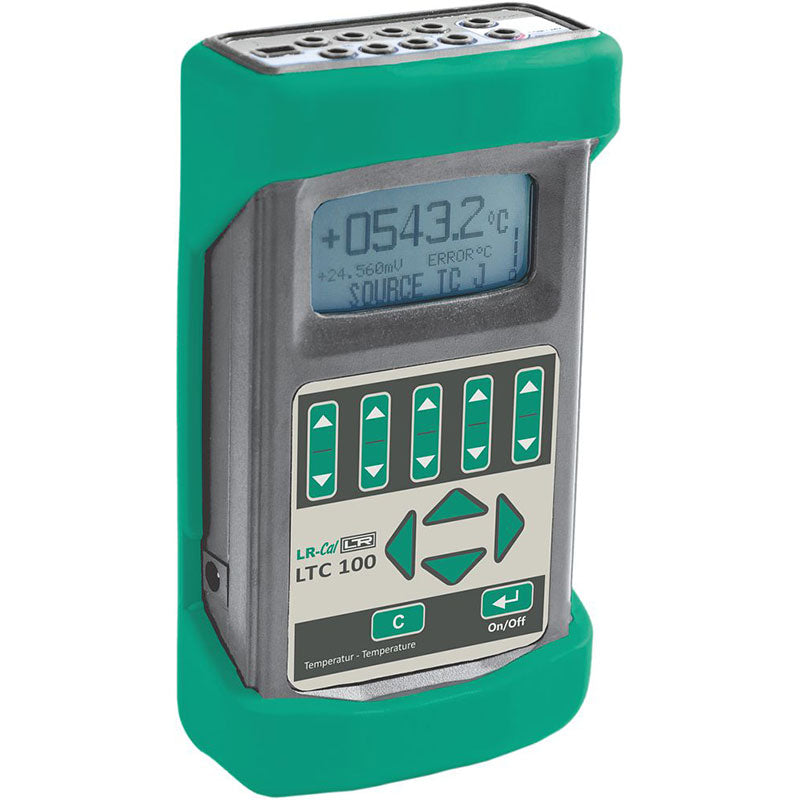

Portable Multifunction Temperatur Calibrator LR-Cal LTC 100

SKU : TCLRLT100
MAKE : LR CAL
MODEL : LTC 100
AVAILABILITY : IN STOCK
LR Cal
AED 0.00 - AED 0.00
AED 0.00
AED 6,900.00
AED 6,900.00 - AED 6,900.00
AED 6,900.00
(Including VAT)

Portable Multifunction Temperatur Calibrator LR-Cal LTC 100

The temperature calibrator LR-Cal LTC 100 simultaneously measures and sources ten types of thermocouples and seven resistance temperaure detectors (RTD), whilst automatically capturing the calibration results. It measures milliamps whilst sourcing or simulating millivolts, TCs, RTDs or ohms to calibrate transmitters.

The LR-Cal LTC 100 logging facility stores data on the SD card supplied, which is easily downloaded to a PC via the onboard USB port and usable in most of the common spreadsheet formats.

The trend feature is ideal for graphing temperature profiles and PID controller optimization with a programmable timebase. In addition, the LR-Cal LTC 100 has the functionality necessary to install and maintain all powered and non-powered transducers using the built-in 24V loop power supply.

The multifunctional Temperature Calibrator LR-Cal LTC 100 is the economical choice for people wanting to do industrial field or workshop calibration.

Portable Multifunction Temperatur Calibrator
MEASURING Range: Accuracy: Resolution:
Milliamps mA 0...24 mA (Impedance ±17 Ohm) 0.02% FS 1 µA
Millivolts mV -10...+100 mV (> 1 MegaOhm) 0.01% FS 1 µV
Thermocouples Types J, K, T, E, N, U, L 0.1% FS *) 0.1°C
Thermocouples Types B, R, S 1% FS *) 0.1°C
Resistance ****) 0...400.00 Ohm
0...2200.0 Ohm		 0.05% FS
0,05% FS		 0.01 Ohm
0.1 Ohm
RTD ****) Types Pt50, Pt100, Pt200, Pt500,
Pt1000, Ni100, Ni120		 0.1% FS 0.01°C
Continuity with a 100 Ohm trigger. Visual and audible confirmation
SOURCING Range: Accuracy: Resolution:
Milliamps mA 0...24 mA (max. load 500 Ohm) 0.02% FS 1 µA
Millivolts mV -10...+100 mV (min. load 100 Ohm) 0.01% FS 1 µV
Thermocouples Types J, K, T, E, N, U, L 0.1% FS *) 0.1°C
Thermocouples Types B, R, S 1% FS *) 0.1°C
Resistance 10.00...400.00 Ohm **)
400.0...2200.0 Ohm **)		 0.05% FS **)
0.05% FS **)		 0.01 Ohm
0.1 Ohm
RTD Types Pt50, Pt100, Pt200, Pt500,
Pt1000, Ni100, Ni120		 0.1% FS 0.01°C
General Data
Isolation Max. 100 VDC between all input and output circuits
Thermocouple Extender Cold junction compensation Pt100 DIN EN 60751, 100 Ohm at 0°C,
nom. resistance drift 0.04% after 1000 h at 500°C
Power supply Type: Lithium-Ion battery
Charging time: approx. 5 h
Life time: typical 8 h (depending on used functions)
Mains charger

Charger input at calibrator: 10...15 VDC
Charger input: 115...230 VAC; 0.5 A; 50/60 Hz
Charger output: 12 VDC at 1.5 A
Optional car charger 12 VDC at 1 A via cigarette lighter plug
Temperature ranges Storage: -40...+50°C incl. battery
Usage: 0...50°C
Relative humidity 0...85% r.F. (non-condensing)
Housing ABS-plastic OL94V-0 flame retardant, IP 54 dust and splash proof
Rubber boot green
Dimension without rubber boot 149 x 34 x 77 mm
with rubber boot 155 x 43 x 86 mm
Weight approx. 340 g
Datasheet : Download
User manual : Download
