In stock

Resistance Meter Hioki RM3548

Name: Resistance Meter Hioki RM3548
Brand: Hioki
SKU: HRMRM3548
Price: 5200.0 AED
Availability: InStock

SKU : HRMRM3548

MAKE : HIOKI

MODEL : RM3548

AVAILABILITY : IN STOCK

AED 0.00 - AED 0.00

AED 0.00

AED 5,200.00

AED 5,200.00 - AED 5,200.00

AED 5,200.00

(Including VAT)

Description

Specification

Accessories

Data sheets

Reviews

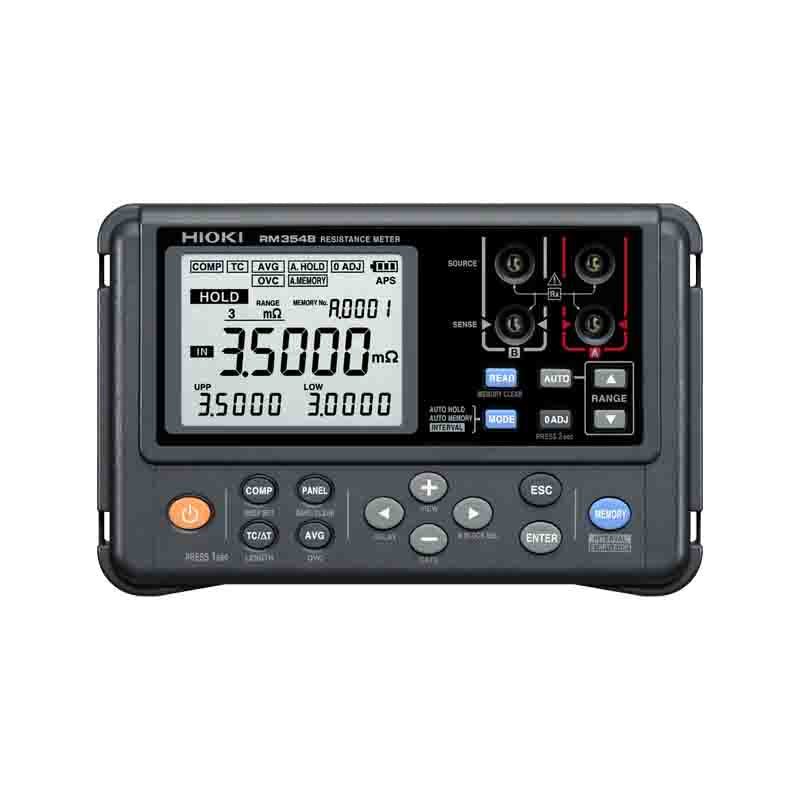

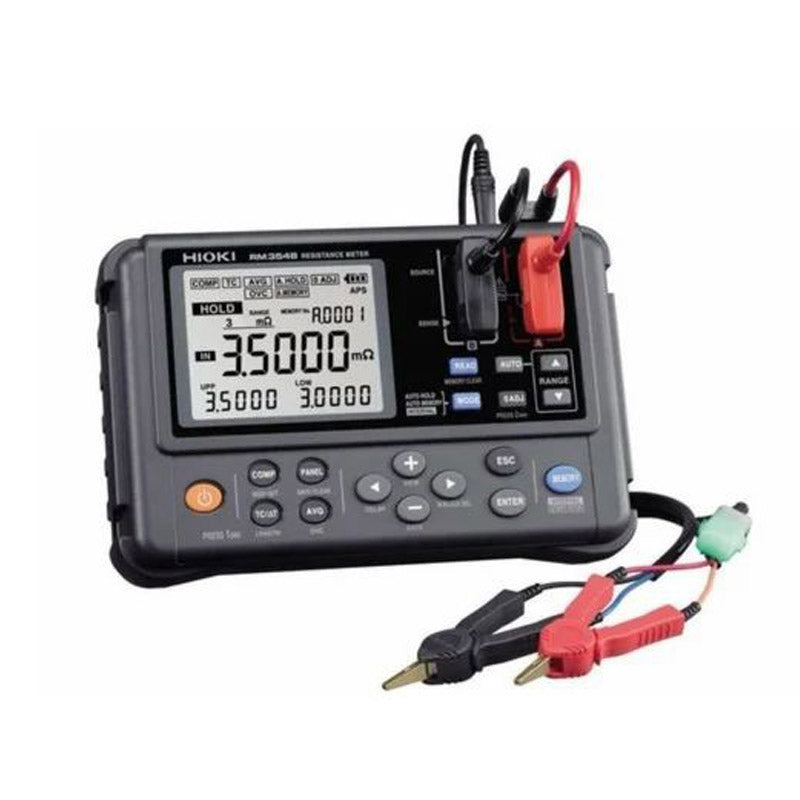

Resistance Meter Hioki RM3548

Hioki DC resistance meters measure a broad range of resistance values at a high level of precision. The RM3548 is a high-precision, portable resistance meter capable of measuring resistance levels from microohms to megaohms, and is ideal for the testing and maintenance of large equipment, for example, measuring the winding and weld resistances in large motors and stators for hybrid and electric vehicles.

Features :

Measure from 0.0 μΩ (@ 1 A) to 3.5 MΩ
Easily record up to 1,000 data points in memory simply by applying the instrument’s probes.
Smoothly capture temperature-rise test data using interval measurement.
Portable design is ideal for maintenance and testing of large equipment.

Weight	0.130 kg
Dimensions	13 × 7 × 3.2 cm
Measurement types	Resistance measurement: 0.0000 mΩ (3 mΩ range) to 3.500 0 MΩ (3 MΩ range), 10 ranges Temperature measurement (thermistor): -10.0 to 99.9°C
Measurement methods	4-terminal direct current (constant current), banana plug
Functions	Temperature correction, temperature conversion, offset voltage compensation (OVC), comparator (ABS/REF%), length conversion, judgment sound setting, auto hold, auto power save (APS)
Power supply	DC1.5 V × 8 (LR6 alkaline battery × 8)
Weight	Approx. 0.77 kg (27.2 oz.)

Description

Resistance Meter Hioki RM3548

Features :

Measure from 0.0 μΩ (@ 1 A) to 3.5 MΩ
Easily record up to 1,000 data points in memory simply by applying the instrument’s probes.
Smoothly capture temperature-rise test data using interval measurement.
Portable design is ideal for maintenance and testing of large equipment.

Specification

Weight	0.130 kg
Dimensions	13 × 7 × 3.2 cm
Measurement types	Resistance measurement: 0.0000 mΩ (3 mΩ range) to 3.500 0 MΩ (3 MΩ range), 10 ranges Temperature measurement (thermistor): -10.0 to 99.9°C
Measurement methods	4-terminal direct current (constant current), banana plug
Functions	Temperature correction, temperature conversion, offset voltage compensation (OVC), comparator (ABS/REF%), length conversion, judgment sound setting, auto hold, auto power save (APS)
Power supply	DC1.5 V × 8 (LR6 alkaline battery × 8)
Weight	Approx. 0.77 kg (27.2 oz.)
