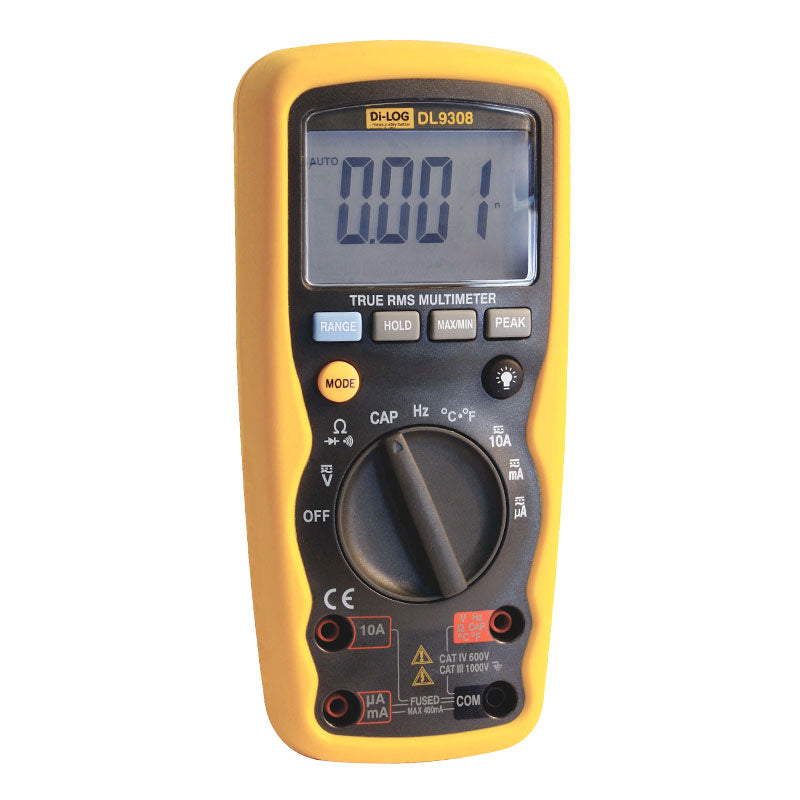

DL9308 True RMS Multimeter
In stock

DL9308 True RMS Multimeter

SKU : DL9308
MAKE : DI-LOG
MODEL : DL9308
AVAILABILITY : IN STOCK
Di-log
AED 0.00 - AED 0.00
AED 0.00
AED 700.00
AED 700.00 - AED 700.00
AED 700.00
(Including VAT)

DL9308 True RMS Multimeter

This is a high precision multimeter offering accuracy, safety and reliability. The DL9308 has True RMS voltage and current readings. With max/min and peak hold function makes this the ideal multimeter for electrical engineers.

Features:

  •     61 segment analogue bar graph
  •     Full overload protection on all ranges
  •     Max/Min, peak hold recording mode
  •     Temperature reading in °C and °F
  •     Wide Capacitance measurement range
  •     Back lit LCD
  •     Range selection for precise readings
True RMS Multimeter
AC voltage

Range : 0.1 mV – 1000 V
Basic Accuracy : 0.8 % +/- 2 digits
DC voltage

Range :0.1 mV – 1000 V
Basic Accuracy : 0.5 % +/- 2 digits
AC current

Range :0.1 µA – 10 A
Basic Accuracy : 1.5 % +/- 3 digits
DC current

Range : 0.1 µA – 10 A
Basic Accuracy : 1.5 % +/- 5 digits
Resistance

Range: 0.1 Ω – 40 MΩ
Basic Accuracy : 0.8 % +/- 3 digits
Capacitance

Range :1 pF – 40 mF
Basic Accuracy :3.0 % +/- 5 digits
Frequency

Range :1 Hz –10 MHz
Basic Accuracy :1.2 % +/- 3 digits
Temperature

Range: -20°C to 760°C
Basic Accuracy :3.0 % +/- 5 digits
Diode test

1 mA typical 3 V DC
Power supply

1 x 9 V PP3 Alkaline battery (supplied)
Dimensions

182 x 82 x 55 mm
Weight

360 g
